  11. Variable FrequencyDrive, 500V, Black/Green

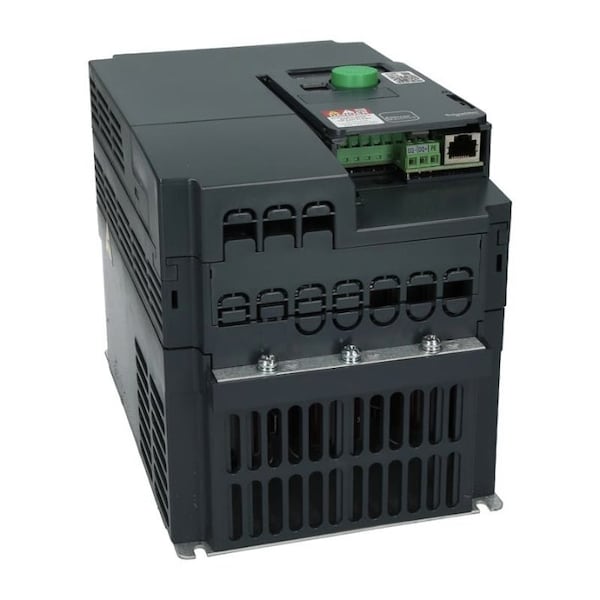

Schneider Electric Variable FrequencyDrive, 500V, Black/Green ATV320U55N4C - main

Variable FrequencyDrive, 500V, Black/Green

  • Mfr # ATV320U55N4C

  • Zoro # G811384600

product price: $1,079.99
/ea
Free Shipping & Returns

Key Features

Output Frequency Range
0.599 kHz
Start/Stop Control
Programmable
Output Phase AC
Three
Display Type
LED
Standards
ATEX, CE Certified, CSA Certified, EAC, GOST, IEC 61800-5-1, KC, NOM, RCM, REACH Regulation, RoHS Compliant, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U55N4C
Zoro #
G811384600
UPC #
3606489917791
Country of Origin
United States

Dimensions

Overall Width
5 7/8 in
Overall Height
9 1/8 in
Overall Depth
7 in

Details

Output Frequency Range
0.599 kHz
Start/Stop Control
Programmable
Output Phase AC
Three
Display Type
LED
Standards
ATEX, CE Certified, CSA Certified, EAC, GOST, IEC 61800-5-1, KC, NOM, RCM, REACH Regulation, RoHS Compliant, UL Listed
Output Voltage
500V AC
Input Voltage
500V
Item
Variable Frequency Drive
Input Phase AC
Three
Enclosure
Open
Control Type
Remote
Input Frequency
50/60 Hz
With Line Contactor / No Line Contactor
With Line Contactor
With Bypass / No Bypass
No Bypass
Displays
LED
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases and Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive
Dynamic Braking
Yes
Control Method
Remote
Digital Readout
Output Current; Output Frequency; Output Voltage
Number of Outputs
(1) Analog, (3) Digital
Input Voltage Range
380V AC to 500V AC
Brake Chopper Included
Yes
Style
Compact
Maximum Output Current
14.3 A
Enclosure Rating
IP20
Output Type
Analog, Digital
Number of Inputs
(3) Analog, (7) Digital
Ethernet Port Included
Yes
Application
Complex Machines
Series
ATV320
Output Voltage Range
380V AC to 500V AC
Input Type
Analog, Digital
Color
Black/Green
Torque Application
Constant Torque, Variable Torque
Maximum Output Power
7 1/2 hp

Description

Variable Frequency Drive, Input Voltage 500V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 7 1/2 hp, Maximum Output Current 14.3 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.599 kHz, Enclosure Rating IP20
