  11. Wall Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,200 sq ft, Fluorescent, Incandescent, LED

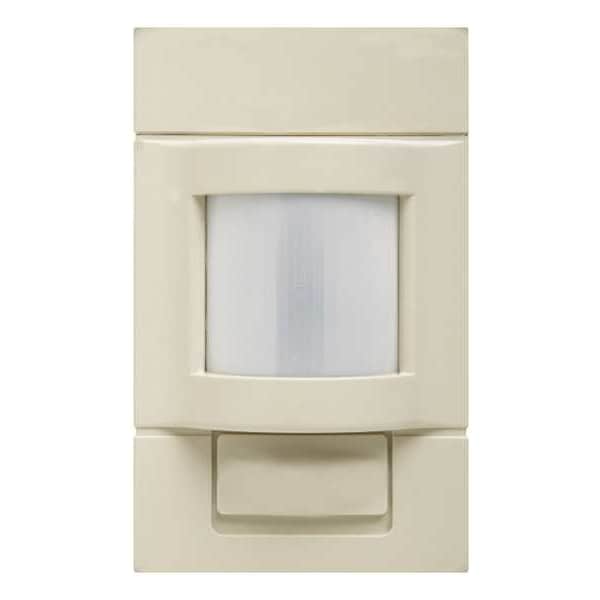

Sensorswitch Wall Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,200 sq ft, Fluorescent, Incandescent, LED LWS WH - main

Wall Mount Sensor, Occupancy, Photocell, Hard Wired, White, 1,200 sq ft, Fluorescent, Incandescent, LED

  • Mfr # LWS WH

  • Zoro # G2389134

product price: $132.99
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 20 min
Max. Capacity @ 120VAC
800W (Fluorescent, Incandescent)
Description/Special Features
Large Area, Photocell Option
Max. Capacity @ 277VAC
1200W (Fluorescent, Incandescent)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LWS WH
Zoro #
G2389134
UPC #
745975866922
Country of Origin
Mexico

Dimensions

Overall Width
3.1 in
Maximum Mounting Height
4 ft
Overall Height
4.93 in
Overall Depth
1.7 in
Minimum Mounting Height
30 in

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 20 min
Max. Capacity @ 120VAC
800W (Fluorescent, Incandescent)
Description/Special Features
Large Area, Photocell Option
Max. Capacity @ 277VAC
1200W (Fluorescent, Incandescent)
For Use With
Fluorescent and Incandescent Lighting Loads
Color
White
Sensor Type
Passive Infrared
Viewing Angle
180 Degrees
Watts @ 120V
800
Item
Occupancy Sensor
Standards
RoHS Compliant
Lighting Technology
Fluorescent, Incandescent, LED
Coverage Angle - Motion Sensor
180 Degrees
Time Delay
Adaptive/Manual
Watts @ 277V
1200
Communication Method
Hard Wired
Number of Gangs
1
Series
Sensor Switch
Horsepower Rating
1/4 hp
Includes Wall Plate
Wall Plate Included
Installation Location
Wall Mount
Includes Motion Sensor
Yes
Sensor Operation
Occupancy, Photocell
Includes Dimming Switch
Dimming Switch Not Included
Manufacturer Warranty
5 yr
Nightlight
No
Load Rating @ 120V AC
800W, Fluorescent, Incandescent
Rated Frequency
50/60 Hz
Maximum Coverage Area
1,200 sq ft
Time Delay Adjustment Method
Adaptive, Manual
Maximum Operating Temperature
85 Degrees F
Fan Rated
Yes
Coverage Type
Small Motion
Maximum Time Delay
20 min
Minimum Operating Temperature
14 Degrees F
Neutral Required
No
Coverage Angle
180 Degrees
Minimum Time Delay
30 sec
Number of Buttons
1
Load Rating @ 277V AC
1,200W (Fluorescent, Incandescent)
Mounting Type
Surface
Environmental Listing
High Humidity
Finish
Gloss
Voltage Rating
120, 277
Application Type
Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Compatible with Series Not Applicable, Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 800W (Fluorescent, Incandescent), Communication Method Hard Wired, Maximum Coverage Area 1,200 sq ft, Neutral Required No, Color White, Nightlight No, Dimming Method Line Voltage, Dimming Type No Dimming
