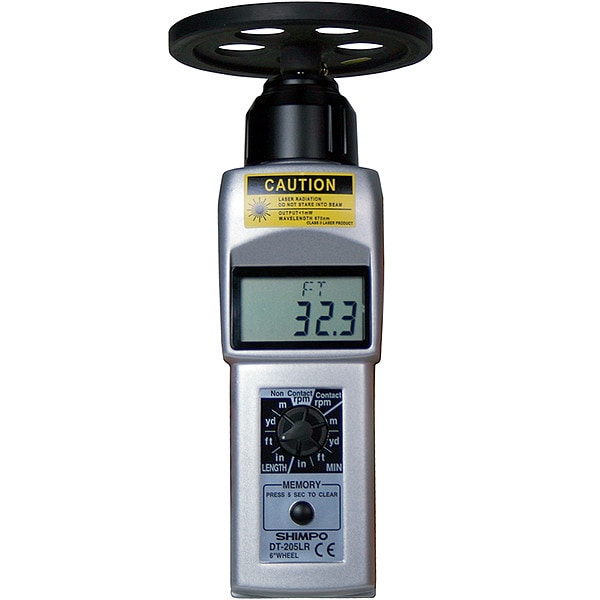

Shimpo Tachometer, 6 to 99,999 rpm DT-205LR-S12 - main
Shop SHIMPO

Tachometer, 6 to 99,999 rpm

  • Mfr # DT-205LR-S12

  • Zoro # G8487735

product price:  $444.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) Cone Adapters, 3.5 in Extension Shaft, Contact Adapter, Funnel Adapter, Master Wheel (6 in cir.), Reflective Tape
RPM Accuracy
+/-0.006%
Features
Built-In Memory 10 Separate Readings, Laser Measures from Distances
RPM Resolution
1 RPM
Contact / Noncontact
Contact and Noncontact
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DT-205LR-S12
Zoro #
G8487735
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturer Warranty Length
2 yr
Battery Size
AA

Details

Item
Tachometer
Includes
(2) Cone Adapters, 3.5 in Extension Shaft, Contact Adapter, Funnel Adapter, Master Wheel (6 in cir.), Reflective Tape
RPM Accuracy
+/-0.006%
Features
Built-In Memory 10 Separate Readings, Laser Measures from Distances
RPM Resolution
1 RPM
Contact / Noncontact
Contact and Noncontact
Display
5 digit LCD
Memory
Last/Min/Max
Standards
CE
Contact RPM Range
0.8 to 25,000
Speed (FPM)
0.80 to 25,000
Speed (M/Min)
0.23 to 7620
Speed Accuracy
+/-0.06% of Reading +/-1 Digit
Light Source
Laser
Noncontact RPM Range
6 to 99,999
Calibration Certificate
NIST
Working Distance
20 ft
Minimum Non-Contact Distance
1 in
Number of Batteries Required
2
Minimum Operating Temperature
32 Degrees F
Maximum Non-Contact Distance
20 ft
Maximum Operating Temperature
113 Degrees F
Minimum Non-Contact RPM
6 RPM
Maximum Velocity Measured
25,000 fpm
Maximum Contact RPM
25,000 RPM
Battery Run Time
25 hr
Digital Display Screen Type
LCD
Batteries Included
Yes
Contact Type
Contact, Non-Contact
Minimum Contact RPM
0.8 RPM
Number of Digits
5
Minimum Velocity Measured
0.4 fpm
Battery Voltage
1.5V
Contact Adaptors Included
Cone Tip, Funnel
Maximum Non-Contact RPM
99,999 RPM
Calibration Certificate Type
NIST
Rotational Speed Measuring Units
ft/min, in/min, m/min, RPM, yd/min

Description

Tachometer, RPM Accuracy +/-0.006 Percent, RPM Resolution 1 RPM, Maximum Contact RPM 25,000 RPM, Minimum Contact RPM 0.8 RPM, Maximum Non-Contact RPM 99,999 RPM, Minimum Non-Contact RPM 6 RPM, Maximum Non-Contact Distance 20 ft, Minimum Non-Contact Distance 1 in, Calibration Certificate Type NIST, Maximum Velocity Measured 25,000 fpm, Minimum Velocity Measured 0.4 fpm, Includes (2) Cone Adapters, 3.5 in Extension Shaft, Contact Adapter, Funnel Adapter, Master Wheel (6 in cir.), Reflective Tape
