  13. 120VAC Reversing Magnetic Contactor 3P 135A NEMA 4

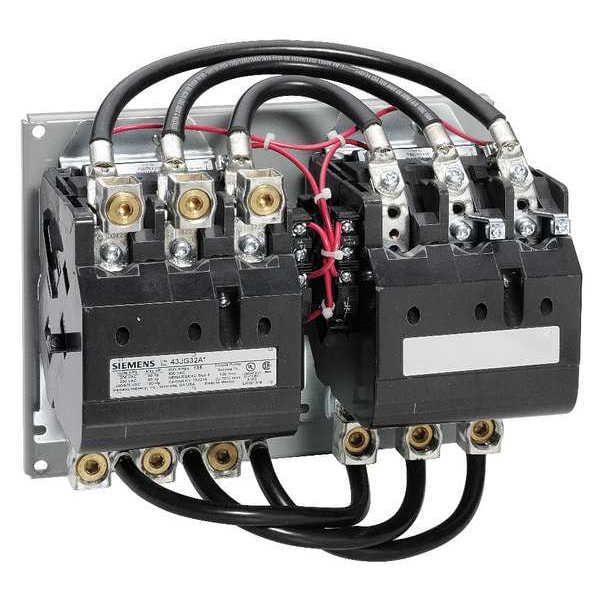

Siemens 120VAC Reversing Magnetic Contactor 3P 135A NEMA 4 43JG32AF - main

120VAC Reversing Magnetic Contactor 3P 135A NEMA 4

  • Mfr # 43JG32AF

  • Zoro # G6371057

product price: $6,251.99
/ea
Free Shipping & Returns

Key Features

Action
Reversing
Full Load Amps
135 A
Number of Poles
3
NEMA Contactor Size
4
Coil Volts
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
43JG32AF
Zoro #
G6371057
UPC #
783087637894
Country of Origin
Mexico

Dimensions

NEMA Contactor Size
4
Height
8.5 in
Width
10.94 in
Depth
6.25 in
NEMA Size
4
Mounting Hole Distance - Width
10.25 in
Overall Depth
6.25 in
Overall Height
8.5 in
Overall Width
10.94 in
Mounting Hole Diameter
0.28 in
Mounting Hole Distance - Height
7.81 in

Details

Item
Magnetic Contactor
Action
Reversing
Full Load Amps
135 A
Number of Poles
3
Coil Volts
120V AC
Reversing
Yes
HP @ 3 Phase - 208V
40 hp
HP @ 3 Phase - 575V
100 hp
HP @ 3 Phase - 240V
50 hp
HP @ 3 Phase - 480V
100 hp
Enclosure NEMA Rating
No Enclosure
Standards
REACH Art 33
Hz
60
Auxiliary Contact Form
2NO/2NC
Frame / Series / Class / Code
Class 43
Series
43
Embedded Surge Suppressor
No
Full Load Current - Inductive
135 A
Minimum Operating Temperature
-4 Degrees F
Horsepower @ Three Phase - 240V AC
50 hp
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 208V AC
40 hp
Phase
Three
Horsepower @ Three Phase - 480V AC
100 hp
Horsepower @ Three Phase - 600V AC
100 hp
Number of Normally Closed Main Contacts
0
Reversing Capability
Reversing
Mounting Style
Surface
Number of Auxillary Contacts
4
Response Time
10 to 12 msec (OFF-Delay Time), 18 to 34 msec (ON-Delay Time)
Number of Normally Open Main Contacts
3
Includes Auxiliary Contacts
Yes
Terminal Connection Type
Screw Terminals
Mounting Postion
Vertical
NEMA Enclosure Rating
No Enclosure
Auxiliary Contact Module Capacity
7
Maximum Operating Temperature
104 Degrees F
Mechanical Operating Durability
5,000,000
Coil Voltage
110/120V AC
Frequency
50/60 Hz
Full Load Current - Resistive
Not Rated
Contactor Style
NEMA

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size 4, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 135 A, Full Load Current - Resistive Not Rated, Reversing Capability Reversing, Overall Height 8.5 in, Overall Width 10.94 in, Auxiliary Contact Module Capacity 7, Terminal Connection Type Screw Terminals, Mounting Style Surface, Series 43, Number of Auxillary Contacts 4, Contactor Style NEMA
