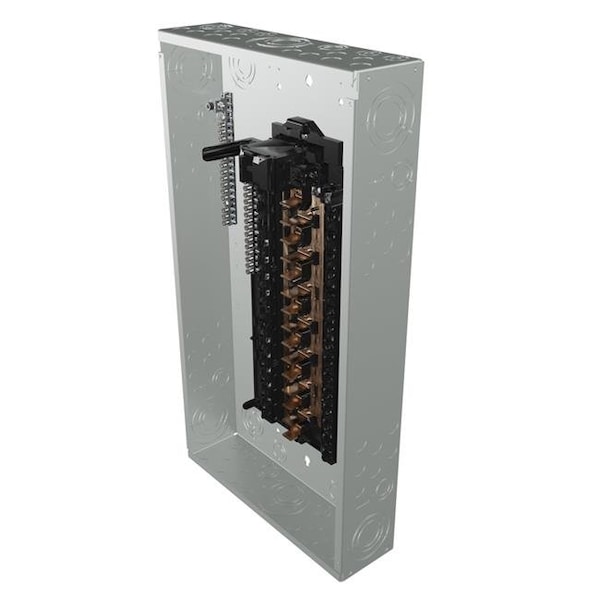

Combination Circuit Breaker Panel, PN, 30 Spaces, 100A, 120/240V AC, Main Circuit Breaker
Mfr # 3008351
Zoro # G003920937
Key Features
Specifications
Product Information
Dimensions
Details
Description
Siemens introduces PN Series Load Centers - a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PN Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers patented insta-wire neutral/ground system convertibility copper bussing and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.
Specifications- Circuit Protection Type: Main Breaker
- Depth: 3.875 in.
- Height: 30 in.
- Width: 14.25 in.
- Indoor or Outdoor: Indoor
- Amperage: 100 amps
- Voltage: 120/240V
- Number of Spaces: 30 Space
- Maximum Number of Circuits: 30 Circuits
- Mounting Type: Combination Mount
- Country of Origin: Mexico
- Weight: 31.68 lbs
