Shop SIEMENS

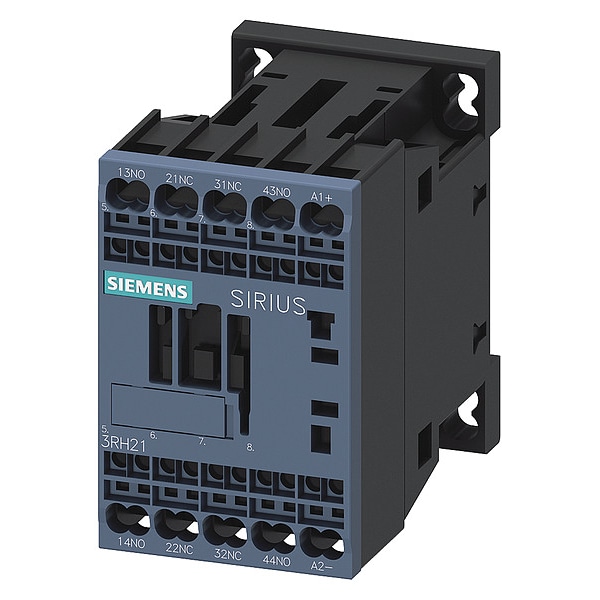

IEC Control Relay, 2NO/2NC, 24V DC, 10 A

  • Mfr # 3RH21222KB40

  • Zoro # G8362682

product price:  $120.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
IEC Style Control Relay
Coil Volts
24V DC
AC Contact Rating - Relay
10A @ 240V, 1A @ 600V, 2A @ 500V, 3A @ 400V
DC Contact Rating - Relay
10A @ 24V
Number of Pins - Relay
8
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3RH21222KB40
Zoro #
G8362682
UPC #
662643903751
Country of Origin
Germany

Dimensions

Overall Height
2.75 in
Body Height - Relay
2.75 in
Body Depth - Relay
2.87 in
Overall Height - Relay
2.75 in
Body Width - Relay
1.77 in
Size
0.045 m / 0.07 m / 0.073 m
Body Width
1.77 in
Frame Size
S00
Body Height
2.75 in
Body Depth
2.87 in

Details

Item - Relay
IEC Style Control Relay
Coil Volts
24V DC
AC Contact Rating - Relay
10A @ 240V, 1A @ 600V, 2A @ 500V, 3A @ 400V
DC Contact Rating - Relay
10A @ 24V
Number of Pins - Relay
8
Mounting - Relay
Surface
Item
IEC Control Relay
Mounting
screw and snap-on mounting onto 35 mm standard mounting rail
Standards
RoHS Compliant, WEEE (2012/19/EU)
Contact Form
2NO/2NC
Electrical Connection
Spring-Type Terminal
Contact Rating
A600 / Q600
Input Voltage
24V DC
Power Consumption - Relay
2.8 W
Features
Surge Voltage Resistance Rated Value 6 kV
Response Time
10 to 15 msec (Arcing Time), 25 to 130 msec (Closing Delay), 7 to 20 msec (Opening Delay)
Connection
spring-loaded terminals
Operating Temperature
-25°C ... 60°C
Operating Cycles
30000000
Coil Power Rating
2.8 W / 2.8 W
Type
Coupling relay for switching auxiliary circuits
Contact configuration
2
Coil voltage
DC
Contact Rating (DC)
0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V
Current Rating
10 A
Minimum Operating Temperature
-13 Degrees F
Coil Voltage
24V DC
Contact Rating (AC)
1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V
Mounting Style
DIN Rail and Surface
Number of Pins
8
Maximum Operating Temperature
140 Degrees F
Relay Style
IEC
Frequency
60 Hz
IP Rating
IP20
Power Consumption
2.8 W
Compatible with Series
3RH21 Control Relays

Description

IEC Control Relay, Current Rating 10 A, Contact Form 2NO/2NC, Contact Rating (DC) 0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V, Coil Voltage 24V DC, Contact Rating (AC) 1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V, Relay Style IEC, Electrical Connection Spring-Type Terminal, Mounting Style DIN Rail and Surface, Power Consumption 2.8 W, IP Rating IP20, Frame Size S00, NEMA Size Not Applicable, Compatible with Series 3RH21 Control Relays
