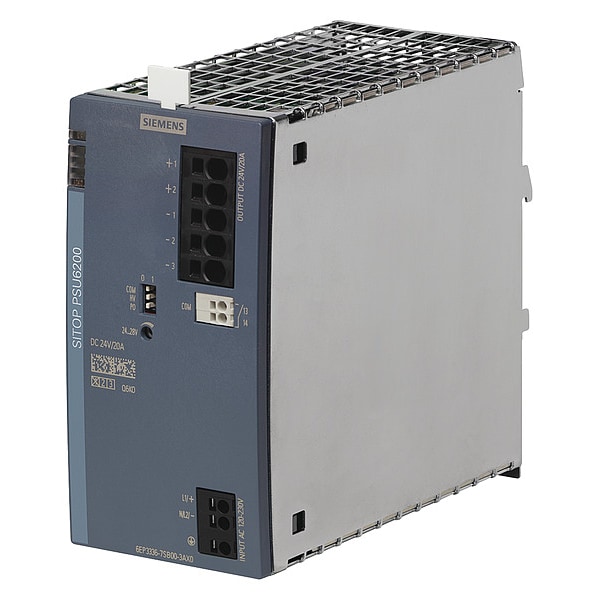

Siemens Stabilized Power Supply, 120/230V AC, 24V DC, 480 W, 20 A, DIN Rail 6EP33367SB003AX0 - main

Stabilized Power Supply, 120/230V AC, 24V DC, 480 W, 20 A, DIN Rail

  • Mfr # 6EP33367SB003AX0

  • Zoro # G8360756

product price: $559.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
120/230V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP33367SB003AX0
Zoro #
G8360756
UPC #
804766818073
Country of Origin
United States

Dimensions

Overall Height
70 mm
Overall Width
135 mm
Overall Depth
155 mm
Height
135 mm
Width
70 mm
Depth
155 mm

Details

Item
Stabilized Power Supply
Input Voltage
120/230V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Output Voltage
24V DC
Operating Temp. Range
-25 to 70°C
Protection
Short-Circuit Proof
Phase - Electrical
Single
Power Rating
480W
Hz
47 to 63 Hz
Features
Parallel Switching for Enhanced Performance, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product Function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Push-in Terminals, Wide-Range Input
Series
SITOP PSU6200
Regulated / Unregulated
Regulated
Output Amps
20A
Standards
BIS, CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, Regulatory Compliance Mark (RCM), RoHS, UL, WEEE (2012/19/EU)
IP Rating
IP20
Status Indicator
LED/DC OK Signal
Operating Temperature - Minimum
-22 Degrees F
Operating Temperature - Maximum
158 Degrees F
Current - Inrush
12 A
Special Features
Short Circuit Protection
Wire Connection Type
Push In

Description

Stabilized Power Supply, Input Voltage 110 to 240V DC, 120 to 230V AC, Output Voltage 24V DC, Power Rating 480W, Output Amps 20, Mounting DIN Rail, Height 135 mm, Width 70 mm, Depth 155 mm, Series SITOP PSU6200, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Status Indicator LED/DC OK Signal
