  11. Stabilized Power Supply, 400/500V, 24V DC, 960 W, 40 A, DIN Rail

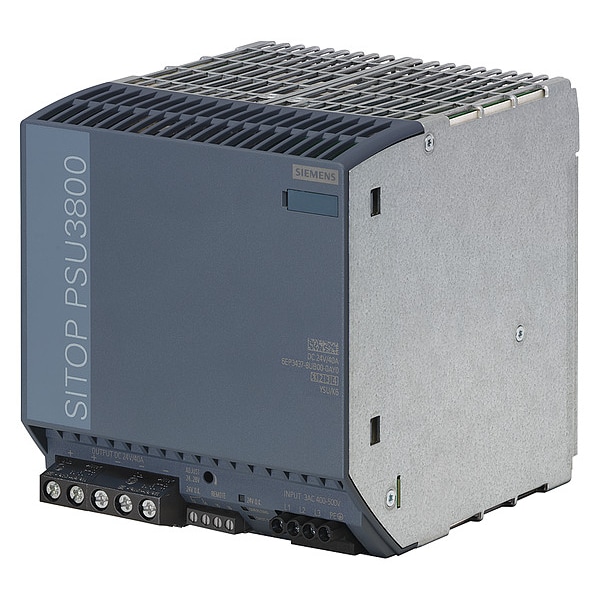

Siemens Stabilized Power Supply, 400/500V, 24V DC, 960 W, 40 A, DIN Rail 6EP34378UB000AY0 - main

Stabilized Power Supply, 400/500V, 24V DC, 960 W, 40 A, DIN Rail

  • Mfr # 6EP34378UB000AY0

  • Zoro # G8364186

product price: $1,034.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
400/500V
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP34378UB000AY0
Zoro #
G8364186
UPC #
804766813078
Country of Origin
Romania

Dimensions

Overall Height
135 mm
Overall Width
145 mm
Overall Depth
150 mm
Depth
150 mm
Height
145 mm
Width
135 mm

Details

Item
Stabilized Power Supply
Input Voltage
400/500V
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Three
Power Rating
960W
Connection
Screw
IP Rating
IP20
Regulated / Unregulated
Regulated
Hz
50/60 Hz
Phase - Electrical
Three
Standards
CB-Certificate Yes, CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Protection
Short-Circuit Proof
Output Voltage
24V DC
Output Amps
40A
Current - Inrush
13 A
Wire Connection Type
Screw Terminals
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Special Features
Short Circuit Protection

Description

Stabilized Power Supply, Input Voltage 400 to 500V AC, Mounting DIN Rail, IP Rating IP20, Standards CB-Certificate Yes, CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
