  11. Stabilized Power Supply, 400/500V AC, 48V DC, 480 W, 10 A, DIN Rail

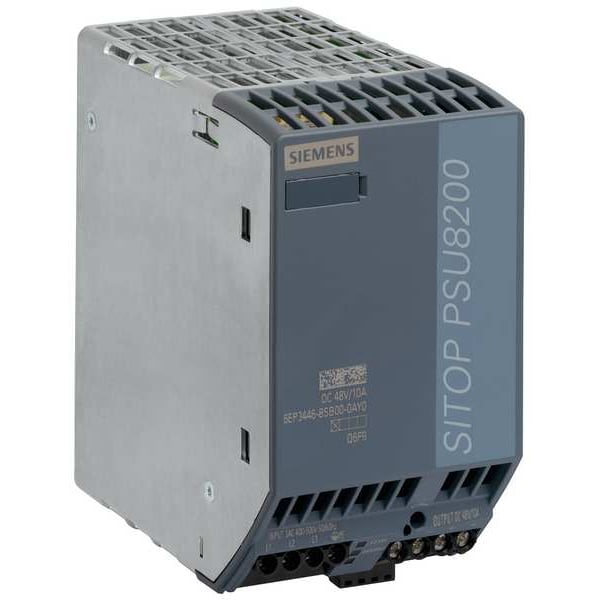

Siemens Stabilized Power Supply, 400/500V AC, 48V DC, 480 W, 10 A, DIN Rail 6EP34468SB000AY0 - main

Stabilized Power Supply, 400/500V AC, 48V DC, 480 W, 10 A, DIN Rail

  • Mfr # 6EP34468SB000AY0

  • Zoro # G8362052

product price: $716.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
400/500V AC
Output Voltage - Nominal
48V DC
Output Power - Rated
480 W
Current - Output
10 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP34468SB000AY0
Zoro #
G8362052
UPC #
804766371790
Country of Origin
Austria

Dimensions

Overall Height
70 mm
Overall Width
125 mm
Overall Depth
125 mm
Width
70 mm
Depth
125 mm
Height
125 mm

Details

Item
Stabilized Power Supply
Input Voltage
400/500V AC
Output Voltage - Nominal
48V DC
Output Power - Rated
480 W
Current - Output
10 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Three
Status Indicator
LED
Regulated / Unregulated
Regulated
Power Rating
480W
Operating Temp. Range
-25 to 70°C
Hz
47 to 63 Hz
Connection
Screw
IP Rating
IP20
Phase - Electrical
Three
Output Voltage
48V DC
Output Amps
10A
Protection
Short-Circuit Proof
Features
Parallel Switching for Enhanced Performance, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product Function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Screw-Type Terminals, Wide-Range Input
Series
SITOP PSU8200
Standards
CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, Regulatory Compliance Mark (RCM), RoHS, UL, WEEE (2012/19/EU)
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Wire Connection Type
Screw Terminals
Current - Inrush
16 A
Special Features
Short Circuit Protection

Description

Stabilized Power Supply, Input Voltage 400 to 500V AC, Output Voltage 48V DC, Power Rating 480W, Output Amps 10, Mounting DIN Rail, Height 125 mm, Width 70 mm, Depth 125 mm, Series SITOP PSU8200, Hz 47 to 63 Hz, Phase - Electrical Three, IP Rating IP20, Status Indicator LED
