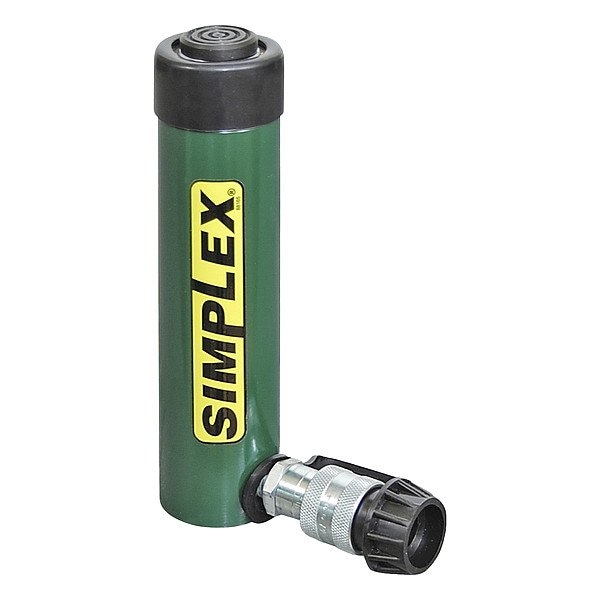

10 TON SPR. RET. S/A 2.18" STROKE CYL.
Mfr # R102
Zoro # G512655696
product price: $489.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
1.69 in
Outside Dia.
2.25 in
Single Acting/Double Acting
Single Acting
Max. Pressure
10,000 psi
Body Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
R102
Zoro #
G512655696
UPC #
662005329427
Country of Origin
United States
Dimensions
Bore Dia.
1.69 in
Outside Dia.
2.25 in
Stroke Length
2 3/16 in
Extended Height
6.97 in
Collar Thread Size
2 1/4"-14
Plunger Thread Size
1.0-8 UNC- 2B
Retracted Height
4.78 in
Plunger Dia.
1.5 in
Base Bolt Circle Dia.
1.56 in
Nominal Stroke Length
2 3/16 in
Base Mounting Thread Size
0.31"-18
Details
Item
Cylinder
Single Acting/Double Acting
Single Acting
Max. Pressure
10,000 psi
Body Material
Steel
Cylinder Type
General Purpose
Weight
5.1 lb
Oil Capacity Push
4.18 cu in
Max. Push Capacity
10 ton
Effective Push Area
2.24 sq in
Nominal Capacity
10 ton
Description
Cylinder, Single Acting, General Purpose, Steel, Nominal Capacity 10 ton, Max. Push Capacity 10 ton, Stroke Length 2 3/16 in, Nominal Stroke Length 2 3/16 in, Effective Push Area 2.24 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 4.18 cu in, Retracted Height 4.78 in, Extended Height 6.97 in, Outside Dia. 2.25 in, Plunger Dia. 1.5 in, Plunger Thread Size 1.0-8 UNC- 2B, Collar Thread Size 2 1/4 In.-14, Base Bolt Circle Dia. 1.56 in, Base Mounting Thread Size 0.31 In.-18
