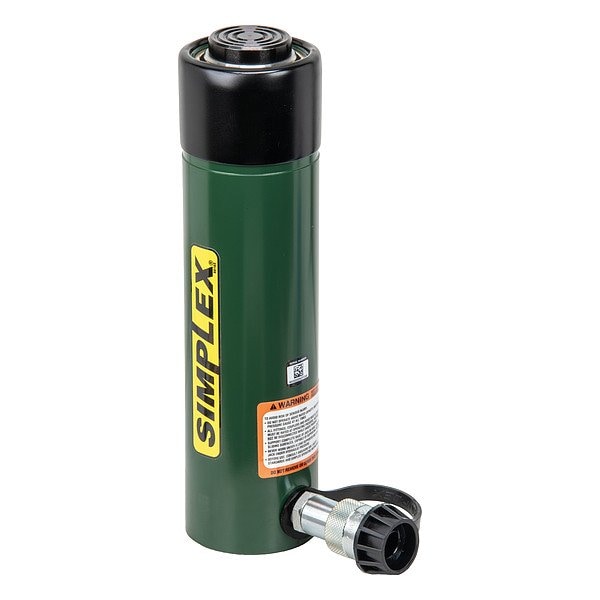

25 TON SPR. RET. S/A 8.19" STROKE CYL.
Mfr # R258
Zoro # G812655723
product price:Â $1,293.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
2.56 in
Weight
27 lb
Collar Thread Size
3.31"-12
Body Material
Steel
Single Acting/Double Acting
Single Acting
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- R258
- Zoro #
- G812655723
- UPC #
- 812761026812
- Country of Origin
- United States
Dimensions
- Bore Dia.
- 2.56 in
- Collar Thread Size
- 3.31"-12
- Retracted Height
- 12.75 in
- Plunger Thread Size
- 1.5-16 UN 2B
- Plunger Dia.
- 2.25 in
- Extended Height
- 20.94 in
- Outside Dia.
- 3.37 in
- Stroke Length
- 8 3/16 in
- Nominal Stroke Length
- 8 in
- Base Bolt Circle Dia.
- 2.31 in
- Base Mounting Thread Size
- 0.5"-13
Details
- Item
- Cylinder
- Weight
- 27 lb
- Body Material
- Steel
- Single Acting/Double Acting
- Single Acting
- Cylinder Type
- General Purpose
- Max. Pressure
- 10,000 psi
- Nominal Capacity
- 25 ton
- Max. Push Capacity
- 25 ton
- Effective Push Area
- 5.16 sq in
- Oil Capacity Push
- 42.55 cu in
Description
Cylinder, Single Acting, General Purpose, Steel, Nominal Capacity 25 ton, Max. Push Capacity 25 ton, Stroke Length 8 3/16 in, Nominal Stroke Length 8 3/16 in, Effective Push Area 5.16 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 42.55 cu in, Retracted Height 12.75 in, Extended Height 20.94 in, Outside Dia. 3.37 in, Plunger Dia. 2.25 in, Plunger Thread Size 1.5-16 UN 2B, Collar Thread Size 3.31 In.-12, Base Bolt Circle Dia. 2.31 in, Base Mounting Thread Size 0.5 In.-13
