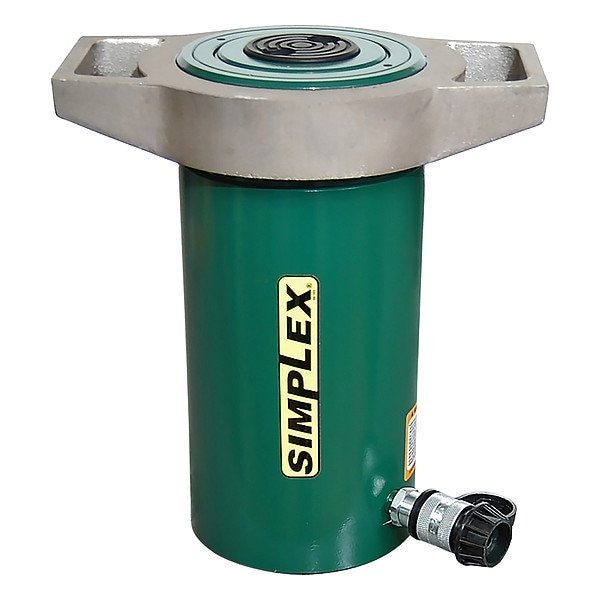

100 TON SPR. RET. S/A 6.63" STROKE CYL.
- Mfr # R1006
- Zoro # G012655639
product price:Â
$
4,123.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
5.13 in
Stroke Length
6 5/8 in
Max. Pressure
10,000 psi
Retracted Height
14.06 in
Extended Height
20.69 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- R1006
- Zoro #
- G012655639
- UPC #
- 812761020759
- Country of Origin
- China
Dimensions
- Bore Dia.
- 5.13 in
- Stroke Length
- 6 5/8 in
- Retracted Height
- 14.06 in
- Extended Height
- 20.69 in
- Outside Dia.
- 7 in
- Plunger Dia.
- 4.13 in
- Collar Thread Size
- 6.87"-12
- Nominal Stroke Length
- 7 in
- Base Mounting Thread Size
- 0.75"-10
- Base Bolt Circle Dia.
- 5.5 in
Details
- Item
- Cylinder
- Max. Pressure
- 10,000 psi
- Weight
- 90 lb
- Cylinder Type
- General Purpose
- Single Acting/Double Acting
- Single Acting
- Body Material
- Steel
- Max. Push Capacity
- 100 ton
- Effective Push Area
- 20.63 sq in
- Nominal Capacity
- 100 ton
- Oil Capacity Push
- 137 cu in
Description
Cylinder, Single Acting, General Purpose, Steel, Nominal Capacity 100 ton, Max. Push Capacity 100 ton, Stroke Length 6 5/8 in, Nominal Stroke Length 7 in, Effective Push Area 20.63 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 137 cu in, Retracted Height 14.06 in, Extended Height 20.69 in, Outside Dia. 7 in, Plunger Dia. 4.13 in, Plunger Thread Size Not Applicable, Collar Thread Size 6.87 In.-12, Base Bolt Circle Dia. 5.5 in, Base Mounting Thread Size 0.75 In.-10
