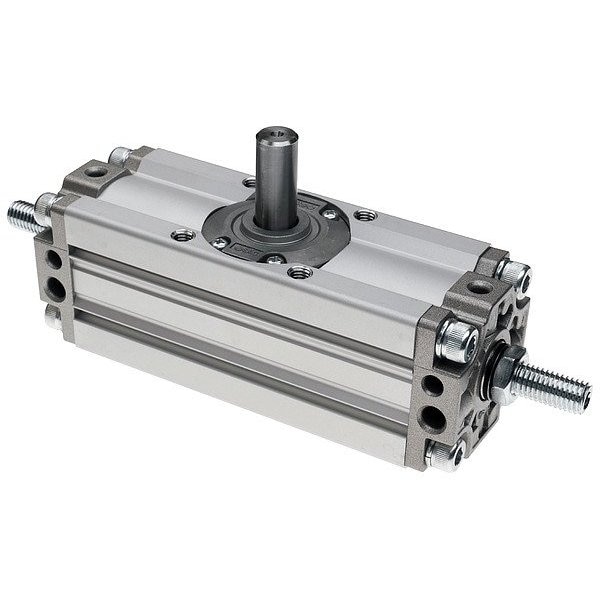

Actuator, Rotary, Rack Pinion Type

  • Mfr # CRA1BSU50TN-190Z-X10
  • Zoro # G513344629
product price:
$
361.99
/ea
Free Shipping & Returns

Key Features

Overall Length
189 mm
Magnetic Piston
Non-Magnetic Piston
Piston Material
Aluminum
Standards
RoHS Compliant
Cushion Type
None
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CRA1BSU50TN-190Z-X10
Zoro #
G513344629
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
189 mm
Bore Diameter
50 mm
Shaft Diameter
15 mm
Overall Height
98 mm
Keyway Length
25 mm
Keyway Width
5 mm
Inlet Size
1/8 in
Shaft Length
33.5 mm
Keyway Depth
5 mm
Overall Width
62 mm
Wire Rope Length
189 mm
Length
189 mm

Details

Item
Rotary Actuator
Magnetic Piston
Non-Magnetic Piston
Piston Material
Aluminum
Standards
RoHS Compliant
Cushion Type
None
Air Inlet Type
NPT
Keyway Type
Parallel Key
Minimum Operating Temperature
32 Degrees F
Maximum Operating Pressure
145 psi
Mount Style
Basic
Minimum Operating Pressure
14.5 psi
System of Measurement
Metric
Maximum Output Torque
18.5 N-m
Housing Material Finish
Anodized
Housing Material
Aluminum Alloy
Output Shaft Type
Keyed Shaft
For Fluid Type
Air
Maximum Operating Temperature
140 Degrees F
Rotation Angle
190 Degrees
Air Inlet Center to Center Distance
170 mm
Actuator Style
Single Rack
Includes
Parallel Key

Description

Actuator, Rotary, Rack Pinion Type
