Shop SMC

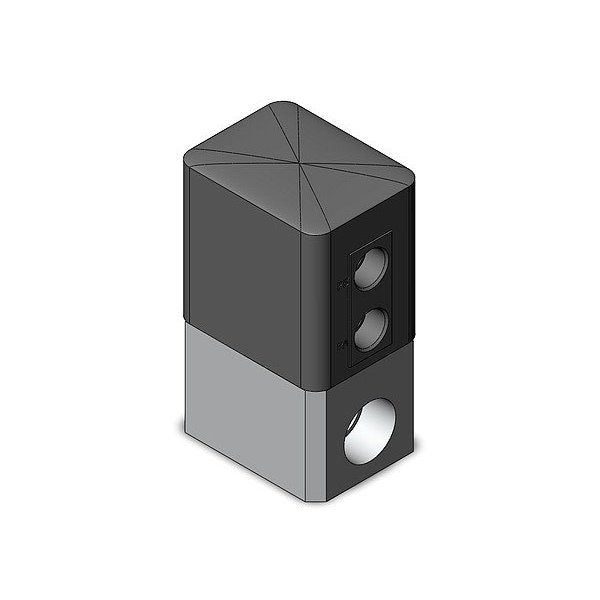

Chemical Liquid Valve, Female, NPT

  • Mfr # LVA30-03N-A

  • Zoro # G022441055

product price:  $448.99
/ea
Free Shipping & Returns

Key Features

Actuator Operation
Air to Air
Operating Temperature - Minimum
0 Degrees C
Coefficient of Volume (Cv)
1.7
Inlet Connection Type
NPT
Connection Size - Side 2
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LVA30-03N-A
Zoro #
G022441055
UPC #
-
Country of Origin
Japan

Dimensions

Connection Size - Side 2
3/8 in
Connection Size - Side 1
3/8 in
Nominal Valve Size
3/8 in
Inlet Connection Size
3/8 in
Overall Height
78.6 mm
Wire Rope Length
47 mm
Overall Length
47 mm

Details

Actuator Operation
Air to Air
Operating Temperature - Minimum
0 Degrees C
Coefficient of Volume (Cv)
1.7
Inlet Connection Type
NPT
Diaphragm Material
PTFE
Item
Chemical Liquid Valve
Connection Type - Side 1
NPT
Inlet Connection Gender
Female
Connection Gender - Side 1
Female
For Media
Chemicals
Stem Material
Polyphenylene Sulfide
Ambient Temperature - Minimum
0 Degrees C
Body Material
Stainless Steel
Actuator Enclosure Material
Polyphenylene Sulfide
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Fail Safe Position
Fail Closed
Maximum Pressure - Operating
1 MPa
Valve Deactivated State
Normally Closed (NC)
Connection Type - Side 2
NPT
Operating Temperature - Maximum
60 Degrees C
Ambient Temperature - Maximum
60 Degrees C
Connection Gender - Side 2
Female

Description

Chemical Liquid Valve, Coefficient of Volume (Cv) 1.7, Nominal Valve Size 3/8 in, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Chemicals, Diaphragm Material PTFE, Operating Temperature - Maximum 60 Degrees C, Maximum Pressure - Operating 1 MPa, Valve Deactivated State Normally Closed (NC), Body Material Stainless Steel, Seal Material Not Applicable, Stem Material Polyphenylene Sulfide, Fail Safe Position Fail Closed, Overall Length 47 mm

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
