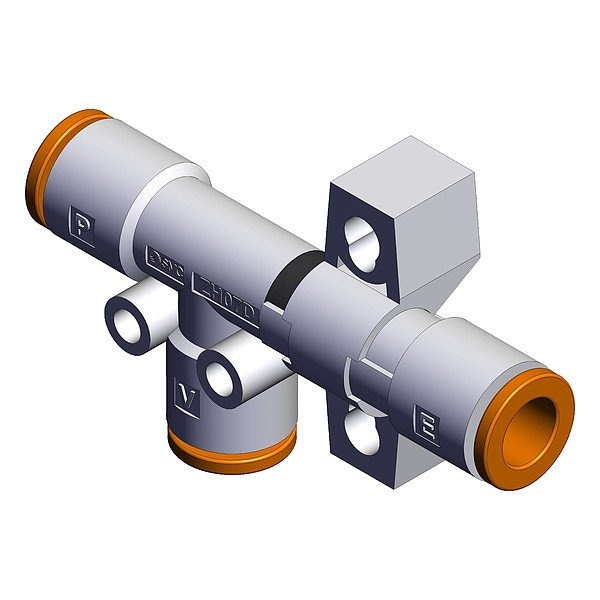

Vacuum Ejector, Body Ported
Mfr # ZH07DSA-07-07-07
Zoro # G221915319
product price:Â $17.99
/eaKey Features
Maximum Flow Rate
28 lpm
Minimum Vacuum Pressure
0.1 MPa
Overall Height
32.4 mm
Maximum Vacuum Pressure
0.6 MPa
Air Consumption
27 lpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH07DSA-07-07-07
- Zoro #
- G221915319
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 32.4 mm
- Overall Width
- 14 mm
- Exhaust Port Size
- 1/4 in
- Wire Rope Length
- 55 mm
- Nozzle Diameter
- .5
- Overall Depth
- 55 mm
- Vacuum Port Size
- 1/4 in
- Pressure Port Size
- 1/4 in
Details
- Maximum Flow Rate
- 28 lpm
- Minimum Vacuum Pressure
- 0.1 MPa
- Maximum Vacuum Pressure
- 0.6 MPa
- Air Consumption
- 27 lpm
- Maximum Supply Pressure
- 0.6 MPa
- Number of Stages
- 1
- Weight
- 0.03 lb
- Exhaust Port Type
- Push-to-Connect
- Maximum Operating Temperature
- 50 Degrees C
- Vacuum Port Type
- Push-to-Connect
- Series
- ZH
- Minimum Operating Temperature
- -5 Degrees C
- Item
- Vacuum Ejector
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Minimum Supply Pressure
- 0.45 MPa
- Pressure Port Type
- Push-to-Connect
Description
Item Vacuum Ejector, Air Consumption 27 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size 1/4 in, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 28 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter .5, Number of Stages 1
