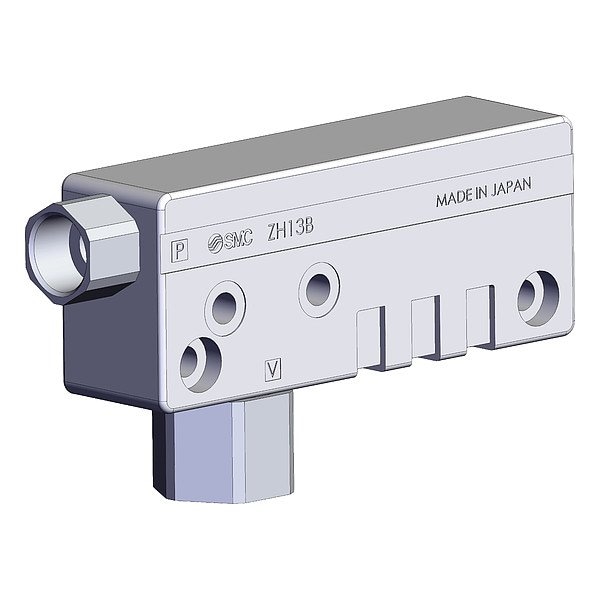

VACUUM GENERATOR
Mfr # ZH13BSA-N01-N02
Zoro # G721914508
product price:Â
$
33.19
/ea
Key Features
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Minimum Vacuum Pressure
0.1 MPa
Minimum Operating Temperature
-5 Degrees C
Maximum Flow Rate
40 lpm
Vacuum Port Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZH13BSA-N01-N02
- Zoro #
- G721914508
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Nozzle Diameter
- 1.3
- Overall Depth
- 84.5 mm
- Overall Width
- 20 mm
- Pressure Port Size
- 1/8 in
- Overall Height
- 44.3 mm
- Vacuum Port Size
- 1/4 in
Details
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Minimum Vacuum Pressure
- 0.1 MPa
- Item
- Vacuum Generator
- Minimum Operating Temperature
- -5 Degrees C
- Maximum Flow Rate
- 40 lpm
- Vacuum Port Type
- NPT
- Maximum Vacuum Pressure
- 0.6 MPa
- Number of Stages
- 1
- Series
- ZH
- Maximum Operating Temperature
- 50 Degrees C
- Pressure Port Type
- NPT
- Minimum Supply Pressure
- 0.45 MPa
- Maximum Supply Pressure
- 0.6 MPa
- Air Consumption
- 88 lpm
- Weight
- 26.9 lb
Description
Item Vacuum Generator, Air Consumption 88 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Not Applicable, Includes Not Applicable, Maximum Flow Rate 40 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.3, Number of Stages 1
