Smc

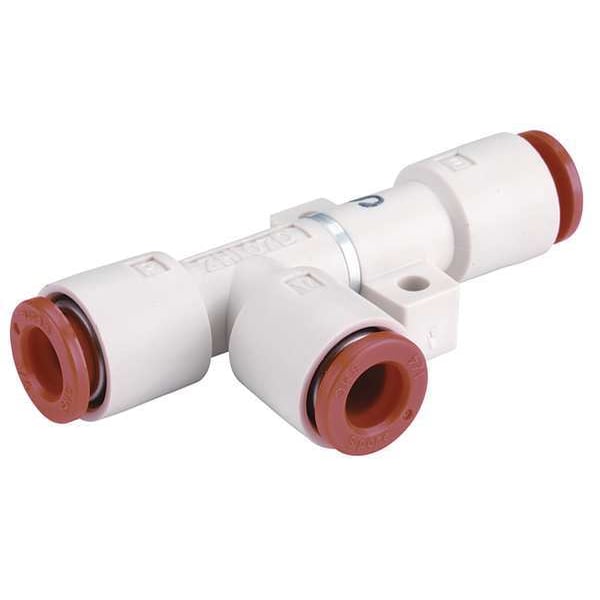

Vacuum Ejector, Inline, Body, 1/4 In Tube

product price: $19.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pressure Port Size 1/4 in
  • Vacuum Port Size 1/4 in
  • Exhaust Type 1/4 in TUBE
  • Vacuum Flow Rate 5.0 lpm
  • Weight 20 g
See all product information

Product Information

Dimensions

Pressure Port Size 1/4 in
Vacuum Port Size 1/4 in
Height 33 mm
Length 57 mm
Width 13.8 mm
Orifice Dia. 0.5 mm
Overall Width 13.8 mm
Overall Length 57 mm
Exhaust Port Size 1/4 in

Details

Exhaust Type 1/4 in TUBE
Vacuum Flow Rate 5.0 lpm
Weight 20 g
Vacuum Pressure @ 40 PSI -35 kPa
Temp. Range 5 Degrees to 60 Degrees C
Vacuum Pressure @ 75 PSI -85 kPa
Vacuum Pressure Range 0 to -88 KPA
Includes Muffler
Supply Pressure Range 30 to 87 PSI
Ejector Type Single Stage Venturi
Item Vacuum Ejector
Vacuum Port Type Tube
Maximum Supply Pressure 87 psi
Maximum Flow Rate 5 lpm
Pressure Port Type Tube
Maximum Operating Temperature 60 Degrees C
Series ZH
Exhaust Port Type Tube

Description

Item Vacuum Ejector, Exhaust Port Size 1/4 in, Exhaust Port Type Tube, Includes Muffler, Maximum Flow Rate 5 lpm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 87 psi, Overall Length 57 mm, Overall Width 13.8 mm, Pressure Port Size 1/4 in, Pressure Port Type Tube, Series ZH, Vacuum Port Size 1/4 in, Vacuum Port Type Tube, Vacuum Pressure @ 40 PSI -35 kPa, Vacuum Pressure @ 75 PSI -85 kPa, Weight 20 g
