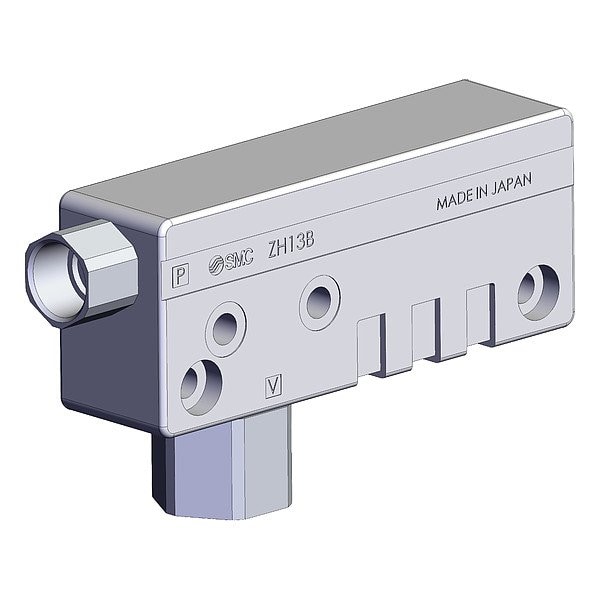

VACUUM GENERATOR
Mfr # ZH13BSA-01-02
Zoro # G121915242
product price:Â
$
33.49
/ea
Key Features
Minimum Vacuum Pressure
0.1 MPa
Number of Stages
1
Maximum Flow Rate
40 lpm
Nozzle Diameter
1.3
Overall Width
20 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZH13BSA-01-02
- Zoro #
- G121915242
- UPC #
- -
- Country of Origin
- Japan
- Minimum Vacuum Pressure
- 0.1 MPa
- Number of Stages
- 1
- Maximum Flow Rate
- 40 lpm
- Pressure Port Type
- RC
- Minimum Operating Temperature
- -5 Degrees C
- Minimum Supply Pressure
- 0.45 MPa
- Vacuum Port Type
- RC
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Item
- Vacuum Generator
- Maximum Operating Temperature
- 50 Degrees C
- Maximum Vacuum Pressure
- 0.6 MPa
- Maximum Supply Pressure
- 0.6 MPa
- Series
- ZH
- Air Consumption
- 88 lpm
- Weight
- 26.9 lb
Description
Item Vacuum Generator, Air Consumption 88 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Not Applicable, Includes Not Applicable, Maximum Flow Rate 40 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure 0.6 MPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.45 MPa, Minimum Vacuum Pressure 0.1 MPa, Nozzle Diameter 1.3, Number of Stages 1
