  9. Drum Pump, 12VDC, 1/4 HP, 60 Hz
Sotera Drum Pump, 12VDC, 1/4 HP, 60 Hz SS435BX713 - main

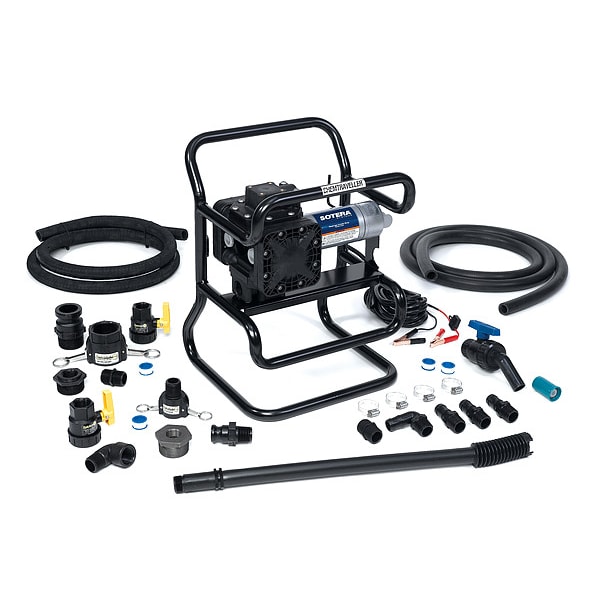

Drum Pump, 12VDC, 1/4 HP, 60 Hz

  • Mfr # SS435BX713

  • Zoro # G0773071

product price: $1,169.99
/ea
Free Shipping & Returns

Key Features

For Use With
Caustics, Cleaners, Degreasers, Deionized Water, Diesel Exhaust Fluid, Solvents
Includes
(2) 1 in NPT 90 Degrees Outlet Flange, 1 in Ball Valve Nozzle, 20 ft Battery Cable with Clips30A Fuse, Anti-Drip Tip
Max. Viscosity
3,000 cps
Motor Type
DC Permanent Magnet
Power Source
Electric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SS435BX713
Zoro #
G0773071
UPC #
089404213285
Country of Origin
United States

Dimensions

Outlet Size
1"
Hose Length
12 ft
Inlet Size
1" NPT
Manufacturers Warranty Length
1 yr.
Discharge Tube Outlet ID Size
1"
Overall Length
22 1/2 in
Hose Outside Dia.
1 in
For Container Size
55 gal
Hose Inside Dia.
3/4 in

Details

For Use With
Caustics, Cleaners, Degreasers, Deionized Water, Diesel Exhaust Fluid, Solvents
Item
Electric Operated Drum Pump
Includes
(2) 1 in NPT 90 Degrees Outlet Flange, 1 in Ball Valve Nozzle, 20 ft Battery Cable with Clips30A Fuse, Anti-Drip Tip
Max. Viscosity
3,000 cps
Motor Type
DC Permanent Magnet
Power Source
Electric
Wetted Materials
Fluorocarbon, Polypropylene, Santoprene, Stainless Steel
Voltage
12VDC
Motor Enclosure
TENV
Metered
No
Motor RPM
360 to 2600
Phase
1
pH Range
3.6 to 11.9
Max. Temp.
130 Degrees F
Application
Diesel Exhaust Fluid, Solvents, Cleaners, Degreasers, Deionized Water, Caustics
Hz
60
Discharge Tubing Material
EPDM
Max. Liquid Temp.
130 Degrees F
GPM
13
Suction Tube Type
Polypropylene
Piston Material
Santoprene
HP
1/4
Seal Material
Fluorocarbon
Max. Pressure
15 psi
Max. GPM for Water
15
DEF Compatible
Yes
Hose Material
EPDM
Type
Diaphragm
Max. Head
34 ft.
RPM
360 to 2600
Max. GPM for Oil
12
Housing Material
Glass Filled Polypropylene
Includes Nozzle
Yes
Variable Speed
No
Max. Flow Rate
13 gpm
Duty Cycle
Intermittent
Food Grade
No
Full Load Amps
20.0 A
Discharge Connection Type
NPT
Discharge Tube Outlet ID
3/4 in
Pump Connection ID
1 in
Pump Connection Type
FNPT
Motor HP
1/4 hp
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Formic Acid, Fresh Water, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
For Media Type
Fertilizers, Fungicides, Herbicides, Motor Oil
Includes Bung Adapter
No
Nozzle Operation
Manual
Max. Head - Pumps
34 ft
Hose Tube Material
EPDM
Includes Suction Tube
Yes
For Container Type
Drum
Includes Discharge Hose
Yes
Number of Phases
1
Discharge Tube Outlet OD
1 in
Frequency (Hz)
60 Hz
Max. Fluid Temp.
130 Degrees F
Diesel Exhaust Fluid Compatible
No
Noise Level
77 db
Housing Material - Pumps
Polypropylene
Hose Cover Material
EPDM
Runs Dry
Yes
Compatible Chemicals
Fertilizers, Fungicides, Herbicides, Motor Oil
Pump Connection OD
1 1/4 in
Max. Outlet Pressure
15 psi
Gear Lube
NT
Grease
NT
Rated Voltage
12V DC

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Outlet Pressure 15 psi, For Use With Caustics, Cleaners, Degreasers, Deionized Water, Diesel Exhaust Fluid, Solvents, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 45 5/8 in, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Manual, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes
