  9. Air Impact Wrench, 3/4In Drive
Shop All Air Impact Wrenches
Speedaire

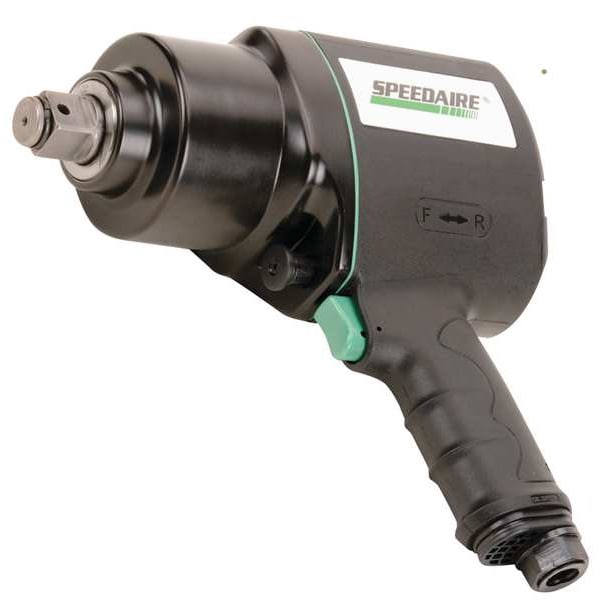

Air Impact Wrench, 3/4In Drive

product price: $651.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Air Inlet 3/8 in NPT Female
  • Blows per Minute 800
  • Duty Industrial
  • Free Speed 5,500 RPM
  • Handle Type Pistol Grip
See all product information

Product Information

Dimensions

Min. Hose Size 1/2 in
Square Drive Size 3/4"
Air Inlet Size - Air Tools 3/8" NPT
Anvil Length - Air Impacts 1.078"
Overall Length 8 1/2 in
Drive Size - Air Tools 3/4" Square
Drive Size 3/4 in Square

Details

Air Inlet 3/8 in NPT Female
Blows per Minute 800
Duty Industrial
Free Speed 5,500 RPM
Handle Type Pistol Grip
Housing Material Composite
Max. Bolt Capacity 1 1/4 in
Max. Torque 1400 ft.-lb.
Torque Range 200 to 1200 ft.-lb.
Blows per Minute - Air Tools 800
Average CFM @ 15 Second Run Time 7.00
Anvil Standard
Tool Weight 7.5 lb
Style Pistol Grip
Item - Air Impact Wrenches Air Impact Wrench
Item Impact Wrench
Handle Material Composite
Duty Cycle - Air Tools Industrial Duty
Required Pressure 90 psi
Anvil Type - Air Impacts Standard
Body Style - Air Tools Pistol
Retainer Type - Air Impacts Ring
Retainer Type Friction Ring
CFM @ Full Load 28.0
Features 360 Degrees Swivel Air Inlet, Composite Motor Housing, Lightweight, Push Button One Hand Forward / Reverse, Twin Hammer Clutch Mechanism
Breakaway Torque 1,400 ft-lb
Impact Sound Level 92 dB
Built-In Light No
Duty Rating Industrial Duty
Drive Type Standard
Fastening Torque 1,400 ft-lb
Air Pressure 90 psi
Impact Rated Yes
Impacts per Minute 800
Exhaust Location Bottom
Min. Air Pressure 50 psi
Vibration Level 11.2 m/sq sec
Number of Speed Settings 3
Power Source Air Powered
Max. Air Pressure 90 psi
Tool Style Full-Size
Clutch Style Twin Hammer
Air Consumption 28 cfm

Description

Impact Wrench, Power Source Air Powered, Air Consumption 28 cfm, Air Inlet 3/8 in NPT Female, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 50 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 1,400 ft-lb, Fastening Torque 1,400 ft-lb, Free Speed 5,500 RPM, Impact Rated Yes, Impact Sound Level 92 dB, Impacts per Minute 800, Number of Speed Settings 3, Max. Bolt Capacity 1 1/4 in, Drive Size 3/4 in Square, Drive Type Standard
