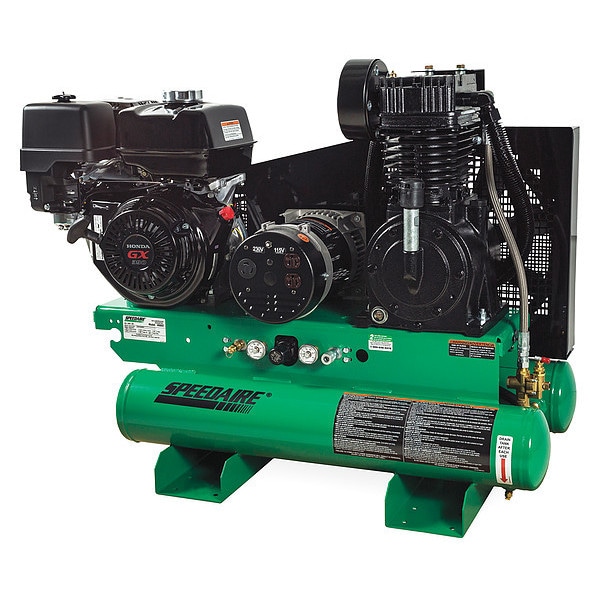

Compressor/Generator, 13 HP, 17CFM Max

  • Mfr # AG2-SH08-08G

  • Zoro # G0436222


product price: $3,623.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Item - Air Compressor
Stationary Air Compressor, Generator
Engine HP - Air Compressor
13.0 hp
Rated Watts - Air Compressor, Generator
2300/3500
Free Air CFM @ 90 PSI - Air Compressor
17.0
Tank Size - Air Compressor
8.0 gal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AG2-SH08-08G
Zoro #
G0436222
UPC #
190735629864
Country of Origin
United States

Dimensions

Tank Size - Air Compressor
8.0 gal
Overall Length
44 in
Overall Height
32 in
Tank Size
8 gal.
Overall Width
22 in
Air Tank Size
8 gal
Outlet Size
1/4 in

Details

Item - Air Compressor
Stationary Air Compressor, Generator
Engine HP - Air Compressor
13.0 hp
Rated Watts - Air Compressor, Generator
2300/3500
Free Air CFM @ 90 PSI - Air Compressor
17.0
Tank Style - Air Compressor
Twin
Engine Starter Type - Air Compressor
Recoil
Fuel Tank Capacity - Air Compressor
1.7 gal
Sound Level - Air Compressor
80.4 dB
(F)NPT Outlet
1/4 in
Includes
(2) Gauges, Regulator
Run Time @ 1/2 Load
5.3 hr
Item
Portable Air Compressor/Generator
Hz
60
Sound Level dB
80.4
Pump Oil Capacity
24.7 oz
Weight - Air Compressor
360 lb
Free Air CFM @ Max. Pressure
15.7
Fuel Tank Capacity
1.7 gal
Free Air CFM @ Max. Pressure - Air Compressor
15.7
Engine Oil Capacity
37 oz
Free Air CFM @ 90 PSI
17.0
Voltage
120
Lubrication Type - Air compressor
Splash Lubricated
ASME Tank
Yes
Max. Pressure - Air Compressor
175 psi
Watts
2300/3500
Engine Brand - Air Compressor
Honda
Rated Watts
2300/3500
Full Power Switch
On/Off
Weight
360 lb
Guard Type
Steel
Tank Type
Twin
Max. Pressure
175 psi
Number of Stages - Air Compressor
2
Fuel Type - Engine
Gasoline
Pump Type - Air Compressor
Piston
Run Time @ Full Load
3.8 hr
Starter Type
Recoil
Sleeves
Cast Iron
Engine Brand
Honda
Amps @ 120/240V
33.3/16.7
Pump RPM
864
Max. Watts @ 120V
4,000 W
Number of Outlets
3
HP
13.0
Pump Type
Reciprocating
Low Oil Shut Down
Yes
RPM
3,600 RPM
Lubrication Type
Splash Lubricated
Maximum Speed
3,600 RPM
Air Tank Style
Horizontal
Outlet Gender
Female
Low Oil Shutdown
Yes
Lubrication Required
Yes
Frequency
60 Hz
Maximum Operating Pressure
175 psi
Free Air Flow Rate @ Maximum Pressure
15.7 cfm
Engine Starter Type
Recoil
Outlet Type
NPT
Sound Level
80.4 dB
Outlet Connection Type
NPT
Engine Output Current
33.3/16.7 A
Wattage
4,000 W
Full-Load Run Time
3.8 hr
Compressor Oil Capacity
24.7 oz
Fuel Type
Gasoline
Engine Output Power
13 hp
Number of Stages
2

Description

Portable Air Compressor/Generator, Fuel Type Gasoline, Number of Stages 2, Engine Output Power 13 hp, Engine Brand Honda, Free Air Flow Rate @ Maximum Pressure 15.7 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 8 gal, Air Tank Style Horizontal, Engine Starter Type Recoil, Sound Level 80.4 dB, Pump Type Reciprocating, Wattage 4,000 W, Maximum Speed 3,600 RPM, Engine Output Current 33.3/16.7 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
This item has been restricted from sale in the following states: CA
