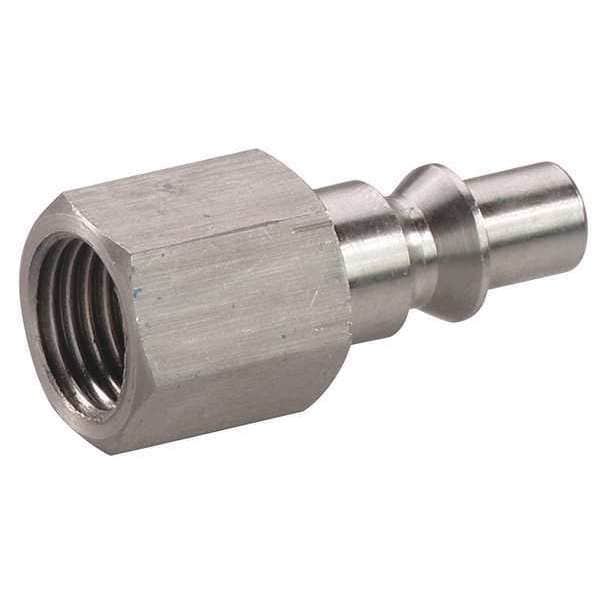

Coupler Plug, (F)NPT, 1/4,304 SS

  • Mfr # 30E554

  • Zoro # G4977533


product price:  $14.99
/ea

Key Features

Interchange Type
ARO
Material
304 Stainless Steel
Coupling Component
Plug
Hose Fitting Gender
Female
Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
30E554
Zoro #
G4977533
UPC #
190735611968
Country of Origin
China

Dimensions

Hose Fitting Size
3/8 in
Coupling Size
1/4 in
Thread Size
3/8"-18
Body Size - Quick Connect Air Couplings
1/4 in

Details

Item
Quick Connect Hose Coupling
Interchange Type
ARO
Material
304 Stainless Steel
Coupling Component
Plug
Hose Fitting Gender
Female
Connection Type
NPT
Finish/Coating
Plain
Max. Flow Rate
1,132.67 lpm
Seal Material
HNBR
Includes Valve
No
Color
Silver
Temp. Range
-40 Degrees to 200 Degrees F
Application
Used on End of Hose or Tool Inlet
Barbed
No
For Use With
ARO Interchange Coupler
Max. Working Pressure @ 70 F
300 psi

Description

The SPEEDAIRE - 30E554 is a quick connect hose coupling designed for push/pull quick connect and disconnect at the end of a hose or tool inlet. It provides a seal using HNBR sealing elements and is intended for quick connect/disconnect using a push/pull locking mechanism. This fitting operates using a push/pull locking mechanism and is compatible with air or fluid service when used within the specified pressure and temperature ratings. It is compatible with ARO interchange couplers when installed and used as specified.

Key Features:

  • Coupling Component: Plug (male half of the quick-connect system)
  • Connection Type: Female NPT with a 3/8"-18 thread size
  • Hose Fitting Gender: Female
  • Hose Fitting Size: 3/8 in
  • Body and Coupling Size: 1/4 in nominal diameter
  • Material: 304 stainless steel construction
  • Seal Material: HNBR for sealing elements
  • Finish: Plain (no plating or coating)
  • Maximum Flow Rate: 1,132.67 liters per minute
  • Maximum Working Pressure: 300 psi at 70°F
  • Operating Temperature Range: -40°F to 200°F
  • Barbed: No
  • For Use With: ARO interchange couplers
