Shop SPEEDAIRE

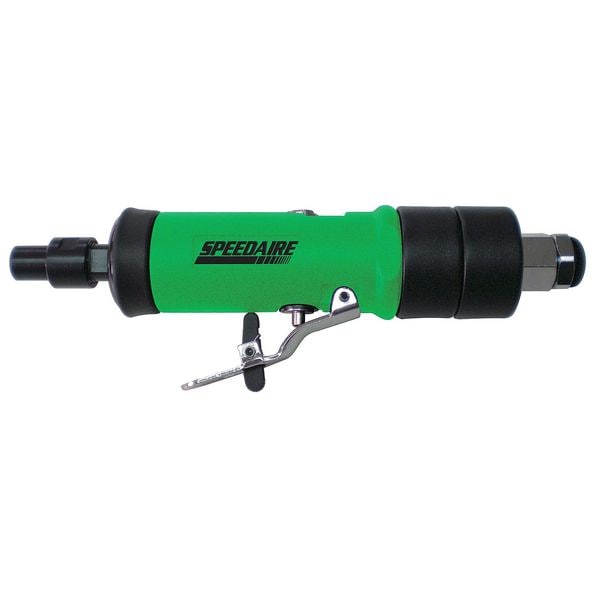

Straight Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Medium Duty, 20,000 RPM, 0.4 hp

  • Mfr # 12V735

  • Zoro # G7480785

product price:
$
207.99
/ea
Free Shipping & Returns

Key Features

Overall Length
179 mm
Air Inlet
1/4 in NPT Female
Horsepower
0.4 hp
Free Speed
20,000 RPM
Max. Speed
21,000 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
12V735
Zoro #
G7480785
UPC #
190735601341
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
179 mm
Min. Hose Size
3/8 in
Maximum Brushed Wheel Diameter
1/4 in
Maximum Burr Diameter
1/4 in
Handle Length
93 mm
Maximum Mounted Point Diameter
1/4 in
Air Inlet Connection Size
1/4 in
Collet Size
1/4 in
Burr Diameter - Maximum
1/4 in
Brushed Wheel Diameter - Maximum
1/4 in
Mounted Point Diameter - Maximum
1/4 in
Hose Size - Minimum
3/8 in
Wire Rope Length
179 mm
Length
179 mm

Details

Item
Die Grinder
Air Inlet
1/4 in NPT Female
Horsepower
0.4 hp
Free Speed
20,000 RPM
Max. Speed
21,000 RPM
Grinder Type
Straight
Includes
1/4 in Erickson Collet
CFM @ Full Load
11.0
Average CFM @ 15 Second Run Time
1.6
Bearing Type
Ball
Collet
1/4 in
Variable Speed
Yes
Handle Material
Composite
Duty
Medium Duty
Throttle
Safety Lever
Grinder Orientation
Straight
Tool Weight
1.1 lb
Application
Grinding
Features
Low Profile Throttle Lever for Increased Comfort
Dust Sealed Switch
Yes
Anti-Vibration Technology
No
Exhaust Location
Rear
Kit Contents
(1) Bare Tool
Accessory Free Tool Change
Yes
Vibration Level
2.5 m/sq sec
Grip Style
Barrel Grip
Air Pressure
90 psi
Anti-Kickback Clutch Type
None
Lock-Off Switch
Yes
Air Inlet Type
NPT
Lock-On Switch
No
Switch Location
Rear
Speed Ranges
0 to 20,000 RPM
Air Consumption
3 cfm
Material Application
Steel
Case Included
Yes
Tether Style
Theter Included
Switch Type
Safety Lever
Safety Stop Mechanisms
Mechanical Brake
Air Inlet Gender
Female
Tool Style
Straight
Number of Speed Settings
Continuous
Anti-Restart Technology
No
Power Source
Air Powered
Minimum Speed
19,000 RPM
Dust Management
Rear Exhaust, Dust Sealed Switch
Speed - Minimum
19,000 RPM
Safety Features
Lock-Off Switch
Robot Mounting Components Included
Tool Only
Speed - Maximum
21,000 RPM
Power Source - TS Only
Air Powered
Power Source - old
Air Powered

Description

Die Grinder, Duty Medium Duty, Horsepower 0.4 hp, Collet Size 1/4 in, Grinder Orientation Straight, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 21,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Straight, Kit Contents (1) Bare Tool, Includes 1/4 in Erickson Collet, Case Included Yes, Grip Style Barrel Grip, Material Application Steel, Safety Stop Mechanisms Mechanical Brake, Safety Features Lock-Off Switch, Anti-Restart Technology No
