  15. Illuminated Push Button, 30 mm, 1NO/1NC, Square

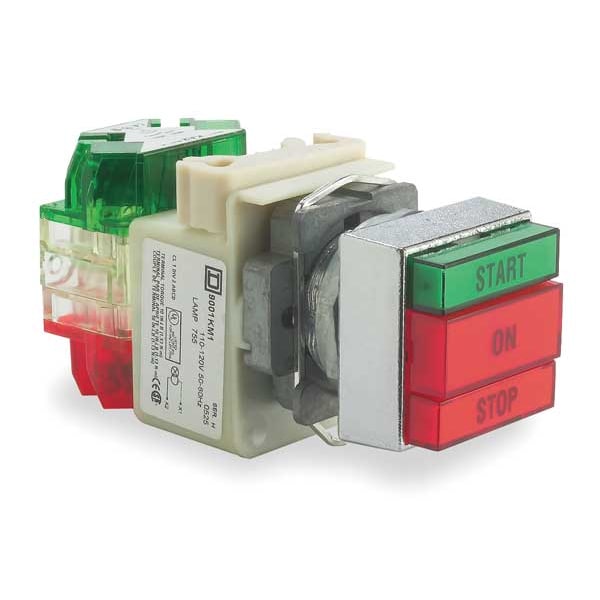

Square D Illuminated Push Button, 30 mm, 1NO/1NC, Square 9001KXRG137 - main

Illuminated Push Button, 30 mm, 1NO/1NC, Square

  • Mfr # 9001KXRG137

  • Zoro # G0406454

product price: $258.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KXRG137
Zoro #
G0406454
UPC #
785901017431
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
REACH, RoHS, WEEE
Number of Heads
3
Basic Material
Metal
NEMA Rating
13, 4, 4X
Legend/Background Color
Black/Green, Black/Red, Black/Red
Contact Form
1NO/1NC
Type of Operator
(1) Light, (2) Flush Buttons
Legend
Start/On/Stop
Includes
Incandescent Lamp
Lamp Module Voltage
120V AC
Lamp Module Type
Full Voltage
Replacement Lamp
Mfr. No. 25501-01-020
Lamp Voltage
120V AC
Contact Rating
10A @ 600V AC
IP Rating
IP20, IP66
Lamp Type
Incandescent
NEMA Contact Rating Designation
A600/Q600
Shape
Square
Number of Operators
3
Bezel Material
Metal
Series
9001K
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Features
Self-Grounding, Finger-Safe Terminals
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Legend Color
Black
Product Type
Push Button Operators
Operator Material
Metal
Legend Background Color
Green/Red
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operating Temperature - Maximum
140 Degrees F
Operator Voltage Rating - Maximum
600 V AC
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Lamp Voltage - Maximum
120 V AC
Number of Indicator Lights
0
Operating Temperature - Minimum
-22 Degrees F

Description

Illuminated Push Button, 30 mm, Momentary/Momentary/Momentary Action, (1) Light, (2) Flush Buttons Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Green/Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 3, NEMA Rating 13, 4, 4X, IP Rating IP20, IP66, Legend Start/On/Stop, Legend/Background Color Black/Green, Black/Red, Black/Red, Standards REACH, RoHS, WEEE, Terminal Connection Screw Clamp
