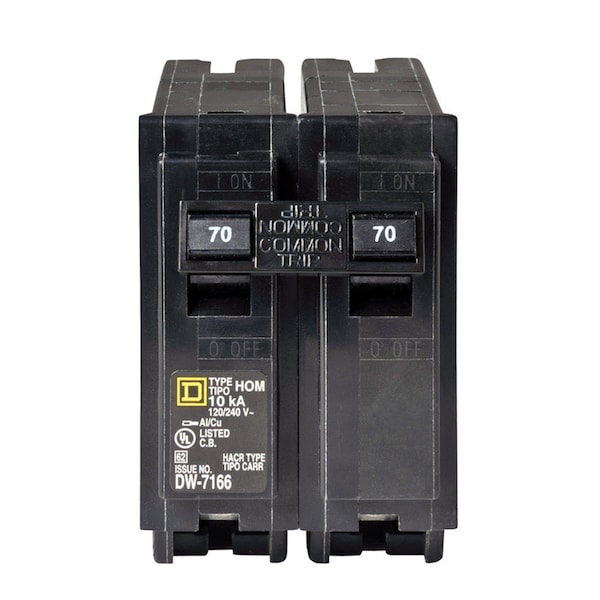

Miniature Circuit Breaker, HOM Series, 70A, 2 Pole, 120/240V AC, 10kA
Mfr # HOM270CP
Zoro # G8649397
product price: $57.85
/eaKey Features
Series
HOM
Amps
70A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
HOM270CP
Zoro #
G8649397
UPC #
47569062810
Country of Origin
Mexico
Dimensions
Width
2 in
Depth
2.98 in
Height
3.13 in
Max. Wire Size
2 AWG (Cu/Al)
Min. Wire Size
8 AWG (Cu/Al)
Details
Item
Miniature Circuit Breaker
Series
HOM
Amps
70A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Application
HACR rated Applications
Features
Mercury Free
Standards
UL Listed
Description
Engineered for value, Homeline circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.
- • Homeline 70 amp 2-pole circuit breaker
- • Plug-on design, easy to install
- • Compatible with Homeline load centers and CSED devices
- • 120 or 240 volt AC
- • 10,000 air
- •
