  5. Molded Case Circuit Breaker, POWERPACT J Series, 200A, 3 Pole, 600V AC, 65kA at 240V AC
Square D Molded Case Circuit Breaker, POWERPACT J Series, 200A, 3 Pole, 600V AC, 65kA at 240V AC JGL36200 - main
Shop SQUARE D

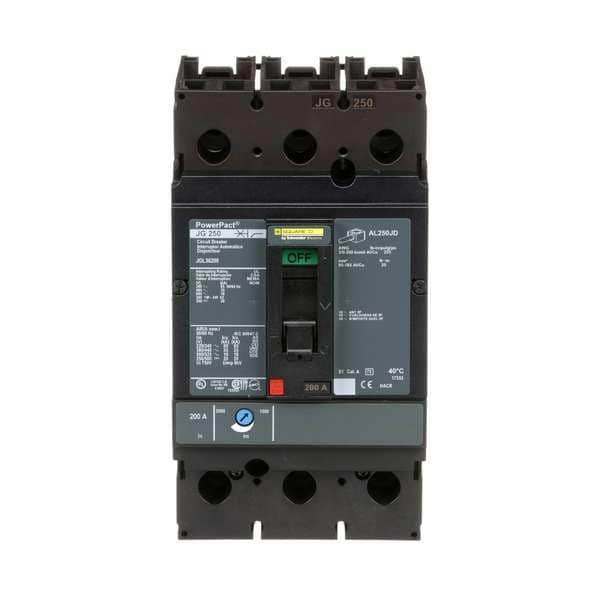

Molded Case Circuit Breaker, POWERPACT J Series, 200A, 3 Pole, 600V AC, 65kA at 240V AC

  • Mfr # JGL36200

  • Zoro # G2602887

product price:  $3,074.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT J
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JGL36200
Zoro #
G2602887
UPC #
785901683216
Country of Origin
Mexico

Dimensions

Frame Size
250A/JG
Width
4.12 in
Depth
5 in
Height
7.52 in
Max. Wire Size
350 MCM
Min. Wire Size
3 AWG
Mounting Height
4.5 in (114.30 mm)
Power Wire Stripping Length
0.98 in (25 mm)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT J
Amps
200A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
65kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Instantaneous
Terminal Connection
Lugs
Phase Connection
ABC
DC Voltage Rating
250/500V DC
Standards
CCC, CE, CSA, IEC, UL Listed
Low Amp Trip Setting
1,000 A
High Amp Trip Setting
2,000 A
For Use With
I Line Panelboards
Application
HACR rated Applications; Distribution
Features
Mercury Free; PVC Free
Interrupt Rating
65 kA at 220/240V AC, 35 kA at 380/440/415/480V AC, 18 kA at 500/525/600V AC, 20 kA at 250/500V DC
Number Of Slots
2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)
Rated Service Breaking Capacity
65 kA 220/240 V AC 50/60 Hz IEC 60947-2; 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 18 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2
Quality Labels
CE
Protection Type
Overload protection; Short-circuit protection
Network Frequency
50/60 Hz
Product Certifications
UL; CSA; NOM
Magnetic Hold Current
1000 A
Operating Altitude
Less than 6561.68 ft (2000 m) without derating; 5000 m with derating
IP Degree Of Protection
Front cover IP40
Rated Impulse Withstand Voltage
8 kV IEC 60947-2
Breaking Capacity Code
G
Circuit Breaker Application
HACR rated
Breaking Capacity
65 kA 240 V AC 50/60 Hz UL 489; 35 kA 480 V AC 50/60 Hz UL 489; 18 kA 600 V AC 50/60 Hz UL 489; 20 kA 250 V DC UL 489; 20 kA 500 V DC UL 489
Rated Operational Voltage
600 V AC 50/60 Hz IEC 60947-3
Suitability For Isolation
Yes IEC 60947-2
Communication Interface
Modbus; Ethernet
Local Signalling
Switched off (OFF) 1 trip indicator green)
Ambient Air Temperature For Storage
-58 to 185°F (-50 to 85°C)
Tightening Torque
221.27 lbf.in (25 N.m) 0.15 to 0.29 in² (95 to 185 mm²) (AWG 3/0 to 350 kcmil)
Pollution Degree
3 IEC 60947-1
Rated Insulation Voltage
750 V IEC 60947-2
AWG Gauge
AWG 3/0 to 350 kcmil aluminium/copper terminals
Long Time Pick-Up Adjustment Range
0.25 to 1 x In
Ambient Air Temperature For Operation
28 to 158°F (-2 to 70°C)
Continuous Current Rating
0.8
Magnetic Tripping Current
2000 A
Device Application
Distribution
Terminal Identifier
AL250JD

Description

Molded Case Circuit Breaker, 200 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65 kA at 240 V AC, For Use With I Line Panelboards, Series JG, High Amp Trip Setting 2,000 A, Low Amp Trip Setting 1,000 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 500V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Instantaneous, Phase Connection ABC, Frame Size 250A/JG, Circuit Breaker Mounting Style Free Standing, Height 7.52 in
