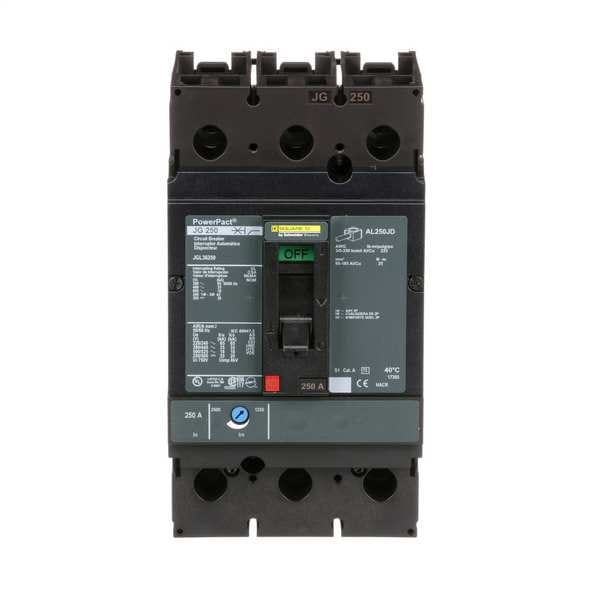

Molded Case Circuit Breaker, POWERPACT J Series, 250A, 3 Pole, 600V AC, 65kA at 240V AC

  • Mfr # JGL36250

  • Zoro # G0835615

CAD Available
product price:  $4,631.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Series
POWERPACT J
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JGL36250
Zoro #
G0835615
UPC #
785901433897
Country of Origin
Mexico

Dimensions

Frame Size
250A/JG
Width
4.12 in
Depth
5 in
Height
7.52 in
Max. Wire Size
350 MCM
Min. Wire Size
3 AWG
Power Wire Stripping Length
0.98 in (25 mm)

Details

CAD Available
Yes
Item
Molded Case Circuit Breaker
Series
POWERPACT J
Amps
250A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
65kA at 240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Instantaneous
Terminal Connection
Lugs
Phase Connection
ABC
DC Voltage Rating
250/500V DC
Low Amp Trip Setting
1,250 A
For Use With
I Line Panelboards
Standards
CCC, CE, CSA, IEC, UL Listed
High Amp Trip Setting
2,500 A
Interrupt Rating
65 kA at 220/240V AC, 35 kA at 380/440/415/480V AC, 18 kA at 500/525/600V AC, 20 kA at 250/500V DC
Application
Electrical Distribution
Features
Mercury Free; PVC Free
Continuous Current Rating
0.8
Product Certifications
UL; CSA; NOM
Operating Altitude
Less than 6561.68 ft (2000 m) without derating; 5000 m with derating
Pollution Degree
3 IEC 60947-1
Breaking Capacity
65 kA 240 V AC 50/60 Hz UL 489; 35 kA 480 V AC 50/60 Hz UL 489; 18 kA 600 V AC 50/60 Hz UL 489; 20 kA 250 V DC UL 489; 20 kA 500 V DC UL 489
Long Time Pick-Up Adjustment Range
0.25 to 1 x In
Protection Type
Overload protection; Short-circuit protection
Rated Operational Voltage
600 V AC 50/60 Hz IEC 60947-3
Network Frequency
50/60 Hz
Magnetic Tripping Current
2500 A
Quality Labels
CE
Breaking Capacity Code
G
AWG Gauge
AWG 3/0 to 350 kcmil aluminium/copper terminals
Number Of Slots
2 auxiliary switch OF plug-in); 1 alarm switch SD plug-in); 1 overcurrent trip switch SDE plug-in); 1 voltage release MN or MX plug-in)
Terminal Identifier
AL250JD
IP Degree Of Protection
Front cover IP40
Device Application
Distribution
Rated Insulation Voltage
750 V IEC 60947-2
Ambient Air Temperature For Storage
-58 to 185°F (-50 to 85°C)
Rated Service Breaking Capacity
65 kA 220/240 V AC 50/60 Hz IEC 60947-2; 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2; 18 kA 500/525 V AC 50/60 Hz IEC 60947-2; 20 kA 250 V DC IEC 60947-2; 20 kA 500 V DC IEC 60947-2
Magnetic Hold Current
1250 A
Suitability For Isolation
Yes IEC 60947-2
Ambient Air Temperature For Operation
28 to 158°F (-2 to 70°C)
Rated Impulse Withstand Voltage
8 kV IEC 60947-2
Tightening Torque
221.27 lbf.in (25 N.m) 0.15 to 0.29 in² (95 to 185 mm²) (AWG 3/0 to 350 kcmil)
Communication Interface
Modbus; Ethernet
Local Signalling
Switched off (OFF) 1 trip indicator green)

Description

Molded Case Circuit Breaker, 250 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65kA at 240V AC, For Use With I Line Panelboards, Series JG, High Amp Trip Setting 2,500 A, Low Amp Trip Setting 1,250 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 500V DC, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Instantaneous, Phase Connection ABC, Frame Size 250A/JG, Circuit Breaker Mounting Style Free Standing, Height 7.52 in
