  5. Molded Case Circuit Breaker, POWERPACT M Series, 800A, 3 Pole, 600V AC, 65kA at 240V AC

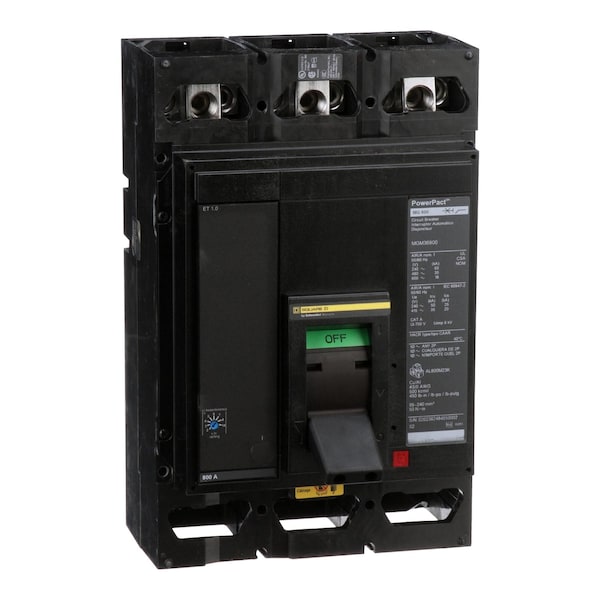

Square D Molded Case Circuit Breaker, POWERPACT M Series, 800A, 3 Pole, 600V AC, 65kA at 240V AC MGM36800 - main

Molded Case Circuit Breaker, POWERPACT M Series, 800A, 3 Pole, 600V AC, 65kA at 240V AC

  • Mfr # MGM36800

  • Zoro # G0841955

product price:  $9,057.99
/ea
Free Shipping & Returns

Key Features

Series
POWERPACT M
Amps
800A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MGM36800
Zoro #
G0841955
UPC #
785901480396
Country of Origin
United States

Dimensions

Frame Size
800A/M
Width
8.27 in
Depth
8.05 in
Height
12.86 in
Min. Wire Size
(3) 3/0 AWG (Cu/Al)
Max. Wire Size
(3) 500 kcmil (Cu/Al)

Details

Item
Molded Case Circuit Breaker
Series
POWERPACT M
Amps
800A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Circuit Breaker Actuator
Operating Handle
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
65kA at 240V AC
Trip Type
Electronic
Terminal Connection
Lugs
Phase Connection
AC
DC Voltage Rating
Not Rated
Standards
UL, CSA, NEMA, NOM, CE
Application
HACR rated Applications; Distribution
Color
Black
High Amp Trip Setting
1600 to 8000 A
Interrupt Rating
25 kA at 240V AC, 20 kA at 380/415V AC, 65 kA at 240V AC, 35 kA at 380/415/480V AC, 18 kA at 600V AC, 50 kA at 240V AC
Features
Mercury Free; PVC Free
Instantaneous Trip
Adjustable

Description

Molded Case Circuit Breaker 600V 800A
