  11. Power Distribution Block, 3 Pole, 150 A Copper, 600 V AC/DC, Surface Mount

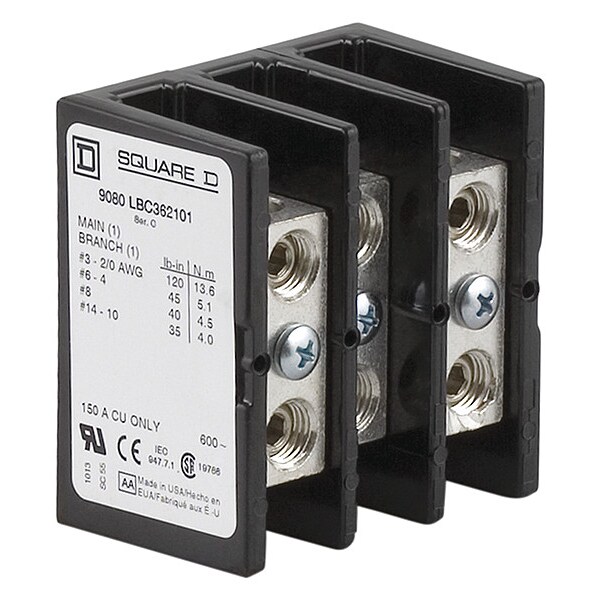

Square D Power Distribution Block, 3 Pole, 150 A Copper, 600 V AC/DC, Surface Mount 9080LBC362101 - main

Power Distribution Block, 3 Pole, 150 A Copper, 600 V AC/DC, Surface Mount

  • Mfr # 9080LBC362101

  • Zoro # G0571089

product price: $231.99
/ea
Free Shipping & Returns

Key Features

Maximum Voltage
600 V AC/DC
Line Connections/Pole
1
Load Connections/Pole
1
Line Side Connection Type
Lug
Load Side Connection Type
Lug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9080LBC362101
Zoro #
G0571089
UPC #
785901097655
Country of Origin
United States

Dimensions

Length
2.88 in
Depth
1.78 in
Width
2.75 in
Wire Strip Length
Line 0.75 in; Load 0.75 in
Height
2.88 in
For Load Copper Wire Size - Maximum
1/0 AWG
For Line Copper Wire Size - Maximum
1/0 AWG
For Load Copper Wire Size - Minimum
18 AWG
For Line Copper Wire Size - Minimum
18 AWG

Details

Item
Power Distribution Block
Maximum Current - Copper Conductor
150 A
Maximum Voltage
600 V AC/DC
Number of Poles
3
Line Connections/Pole
1
Load Connections/Pole
1
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Housing Material
Phenolic
Maximum Operating Temperature
302 Degrees F
Mounting Type
Surface Mount
Standards
UL recognized E60616 CCN XCFR2, CSA file 70361 class 6228 01, CE
Features
Mercury Free
Short Circuit Current Rating
65 kA
Min. Operating Temp.
-40°F
Ambient Air Temperature For Operation
-40-302°F
Range of Product
9080LB
Short-Circuit Current
65 kA
[Ue] Rated Operational Voltage
600 V AC/DC
Product Compatibility
9080LB23
Number of Cables
line 1 , AWG 18...AWG 1/0, copper, load 1 , AWG 18...AWG 1/0, copper
[Ics] Rated Service Breaking Capacity
100 kA UL 508 A
Terminal Tightening Torque
Line lug 50 lbf.in (5.65 N.m) AWG 6 to AWG 1/0 copper; Line lug 40 lbf.in (4.52 N.m) AWG 8 copper; Line lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper; Load lug 50 lbf.in (5.65 N.m) AWG 6 to AWG 1/0 copper; Load lug 40 lbf.in (4.52 N.m) AWG 8 copper; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper
End Barrier
9080LB23

Description

Power Distribution Block 600V 150A
