  11. Female Disconnect, Red, 22 to 18 AWG, PK100

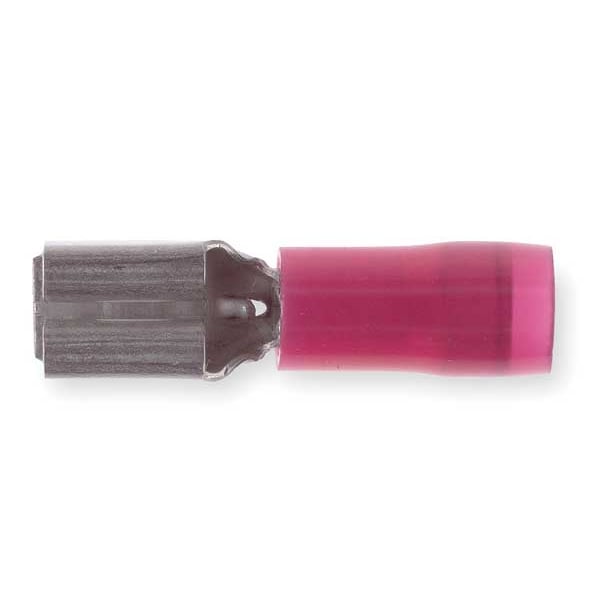

Sta-Kon Female Disconnect, Red, 22 to 18 AWG, PK100 RAD18-183 - main

Female Disconnect, Red, 22 to 18 AWG, PK100

  • Mfr # RAD18-183

  • Zoro # G1431744

product price: $66.89
/pk 100, $0.67/ea

Key Features

Insulation
Partial
Material
Brass
Insulation Color
Red
Color
Red
Insulation Type
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RAD18-183
Zoro #
G1431744
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
0.83 in
Tab Size
0.032 in x 0.187 in
Barrel Inside Dia.
0.06 in
Minimum Wire Size
22 AWG
Maximum Wire Size
18 AWG
Tab Width
0.187 in
Barrel Size
Long
Tab Thickness
0.032 in
Barrel Inside Diameter
0.06 in
Stock Thickness
0.03

Details

Item
Female Disconnect
Insulation
Partial
Material
Brass
Insulation Color
Red
Color
Red
Insulation Type
Nylon
Wire Range
22 to 18 AWG
Connection Type
Crimp
Seam
Overlapped
Max. Voltage
600 V
Max. Temp.
221 Degrees F
Standards
UL E66716
Connection Material
Tin-Plated Copper
Features
Quick, reliable method of connection to terminal blocks and boards without the use of tools.; Unique construction of the female disconnect offers long-term dependability.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RAD1833
Insulation Material
Nylon
Contact Material
Copper
Barrel Style
Funnel Entry
Maximum Voltage
600 V
Seam Style
Overlapped
Termination Style
Crimp
Special Features
Quick, Reliable Method of Connection to Terminal Blocks and Boards without the Use of Tools, Unique Construction of the Female Disconnect Offers Long-Term Dependability
UL 94 Flammability Rating
Not Rated
Insulation Coverage
Partial Coverage
RoHS Compliant
No
Contact Finish
Tin
Maximum Operating Temperature
221 Degrees F
Terminal Type
Socket
Flammability Rating
UL 94 V-2
Application Tools
WT145C, WT2000, WT112M, ERG4001, ERG4003
Maximum Insulation (inches)
0.136
B (inches)
0.23
Terminal Series
RAD
Disconnect Type
Female - 187 Series
Temperature Rating
105°C
A (inches)
0.83
Finish
Electro Tin-Plated
Voltage Rating
600V
Recommended Tool
ERG4001
AWG-range
22-18
Type
Nylon Insulated Female Disconnect
Material insulation
PA

Description

Female Disconnect, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.187 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Overlapped, Standards UL E66716, Barrel Inside Diameter 0.06 in
