  11. Female Disconnect, Yellow, 12to10AWG, PK50

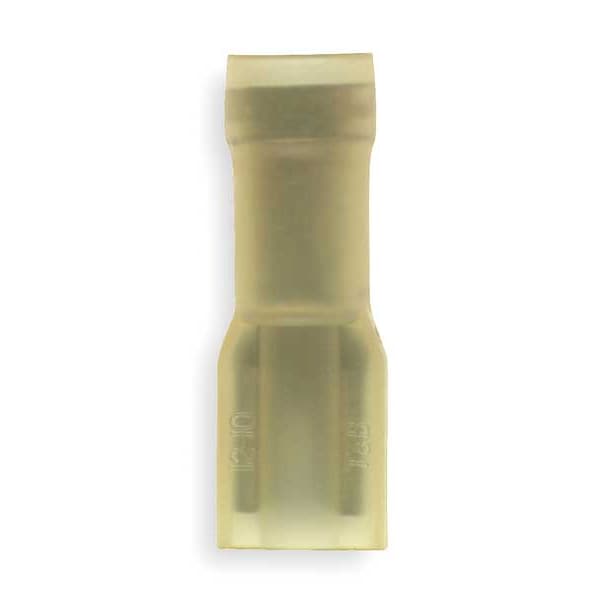

Sta-Kon Female Disconnect, Yellow, 12to10AWG, PK50 10RC-2577 - main

Female Disconnect, Yellow, 12to10AWG, PK50

  • Mfr # 10RC-2577

  • Zoro # G2864863

product price: $73.35
/pk 50, $1.47/ea

Key Features

Insulation
Full
Material
Brass
Insulation Color
Yellow
Color
Yellow
Insulation Type
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10RC-2577
Zoro #
G2864863
UPC #
-
Country of Origin
United States

Dimensions

Tab Size
0.032 in x 0.250 in
Overall Length
1.04 in
Barrel Inside Dia.
0.133 in
Barrel Inside Diameter
0.133 in
Maximum Wire Size
10 AWG
Tab Thickness
0.032 in
Minimum Wire Size
12 AWG
Tab Width
0.25 in
Barrel Size
Long
Stock Thickness
0.04

Details

Item
Female Disconnect
Insulation
Full
Material
Brass
Insulation Color
Yellow
Color
Yellow
Insulation Type
Nylon
Connection Type
Crimp
Wire Range
12 to 10 AWG
Seam
Overlapped
Max. Voltage
600 V
Max. Temp.
221 Degrees F
Standards
UL E66716
Connection Material
Tin-Plated Copper
Features
Unique construction of the female disconnect offers long-term dependability.; Brazed seam serrated barrel provides maximum tensile strength.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RC2573
Special Features
Brazed Seam Serrated Barrel Provides Maximum Tensile Strength, Unique Construction of the Female Disconnect offers Long-Term Dependability
Insulation Material
Nylon
RoHS Compliant
No
Maximum Operating Temperature
221 Degrees F
Termination Style
Crimp
Insulation Coverage
Full Coverage
Barrel Style
Funnel Entry
UL 94 Flammability Rating
Not Rated
Contact Material
Brass
Terminal Type
Socket
Contact Finish
Tin
Maximum Voltage
600 V
Seam Style
Brazed
Voltage Rating
600V
Disconnect Type
Female - 250 Series
Temperature Rating
105°C
Finish
Electro Tin-Plated
Recommended Tool
ERG4001
Terminal Series
RC
Maximum Insulation (inches)
0.225
B (inches)
0.38
A (inches)
1.04
Application Tools
WT145C, WT2000, WT112M, ERG4001, ERG4003
Flammability Rating
UL 94 V-2
Type
Nylon Fully Insulated Female Disconnect
AWG-range
12-10
Material insulation
PA

Description

Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Quick Disconnect, Insulation Color Yellow, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716
