  9. PeristalticChemMeteringPump, 150gpd, 25psi

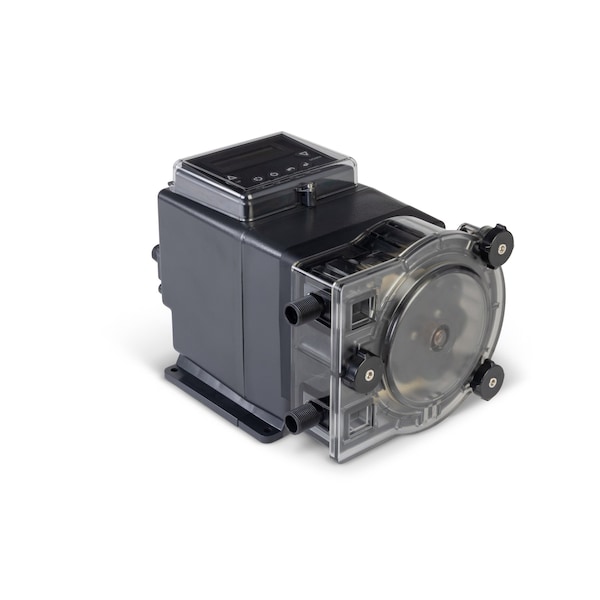

Stenner PeristalticChemMeteringPump, 150gpd, 25psi S405X - main

PeristalticChemMeteringPump, 150gpd, 25psi

  • Mfr # S405X

  • Zoro # G508595678

product price: $1,772.99
/ea
Free Shipping & Returns

Key Features

Flow Rate Output Control
Adjustable
Tubing Material
Santoprene
Turn Down Ratio
100:1
Cord Length
6 ft
Number of Feeds
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S405X
Zoro #
G508595678
UPC #
840034750959
Country of Origin
United States

Dimensions

Cord Length
6 ft
Manufacturers Warranty Length
2 yr
Overall Length
7.2 in
Overall Height
7 in
Overall Width
11 in
Discharge Connection Size
3/8 in
Intake Connection Size
3/8 in

Details

Flow Rate Output Control
Adjustable
Item
Peristaltic Chemical Metering Pump
Tubing Material
Santoprene
Turn Down Ratio
100:1
Number of Feeds
1
Standards
CE, IAPMO, INTERTEK/ETL, IP65, NEMA 4X, NSF/ANSI, NSF/ANSI 61 & 372
Reproducibility
+/-2.0%
Phase
Single
Includes
(1) Additional Pump Tube, (1) Ball Check Valve, (1) Mounting Bracket, (1) Quick Start Guide, (1) Suction/Discharge Tubing and White or UV Black, (1) Weighted Suction Line Strainer, (3) Connecting Nuts(2) Adapters
Ambient Temperature (Maximum)
104 Degrees F
Frequency
60 Hz
Motor Type
DC
Flow Rate (Minimum)
1.5 gpd
Electrical Connection Type
Plug-In
Priming
Self-Priming
Roller Material
Polyethylene
Motor Enclosure
Totally Enclosed
Housing Material
Polycarbonate
Flow Rate (Maximum)
150 gpd
Duty Cycle
Continuous
Motor Speed (Maximum)
45 RPM
Viscosity (Maximum)
1,500 cps
Degassing Valve Included
No
Head Material
Polycarbonate
Pressure (Maximum)
25 psi
Control Programs
0-10 VDC Input, 4-20 mA Input, 7 Day/24 Hour Timer, Cycle Timer, Hall Effect Flow Sensor, Manual Control, Pulse
Nameplate Voltage
120V AC
Horsepower (Maximum)
1/16 hp
Intake Connection Type
NPT
Media Temperature (Maximum)
104 Degrees F
Discharge Connection Type
NPT
Chemical Compatibility
Ammonium Hydroxide, Antifreeze, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Water
Media Temperature (Minimum)
32 Degrees F
Fitting Material
Polypropylene, PVC

Description

Peristaltic Chemical Metering Pump, Control Programs 0-10 VDC Input, 4-20 mA Input, 7 Day/24 Hour Timer, Cycle Timer, Hall Effect Flow Sensor, Manual Control, Pulse, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Flow Rate (Maximum) 150 gpd, Flow Rate (Minimum) 1.5 gpd, Horsepower (Maximum) 1/16 hp, Intake Connection Size 3/8 in, Intake Connection Type NPT, Media Temperature (Maximum) 104 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 120V AC
