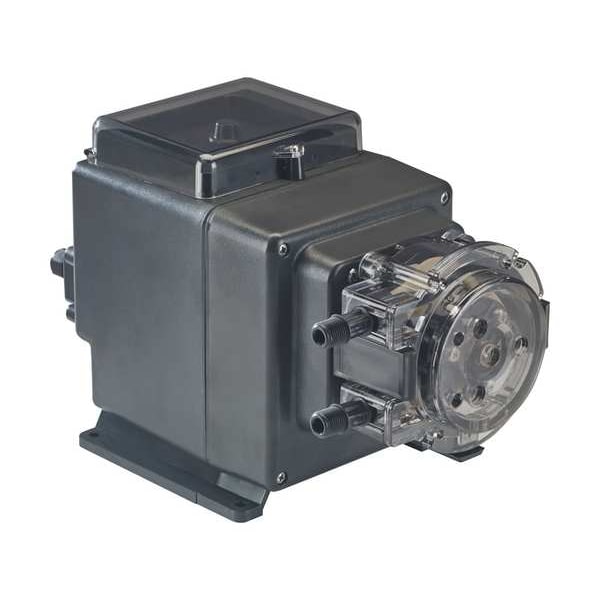

PeristalticChemMeteringPump, 17gpd, 100psi

Mfr # S3402AA101NG1
Zoro # G403658119

1,582.99

Free Shipping & Returns

Key Features

Chemical Metering Pump Type

Peristaltic

Flow Rate Output Control

Variable

Max. Flow (gpd) - Pumps

17.00 gpd

Max. Pressure - Pumps

25 psi

Voltage - Pumps

120V AC

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: S3402AA101NG1
Zoro #: G403658119
UPC #: 840034748116
Country of Origin: United States

Dimensions

Length: 6.4 in
Cord Length: 6 ft
Height: 7 in
Width: 6 2/5 in
Overall Length: 6.4 in
Manufacturers Warranty Length: 2 yr
Intake Connection Size: 1/4 in
Overall Height: 7 in
Overall Width: 10.9 in
Discharge Connection Size: 1/4 in
Wire Rope Length: 6.4 in

Details

Chemical Metering Pump Type: Peristaltic
Flow Rate Output Control: Variable
Max. Flow (gpd) - Pumps: 17.00 gpd
Max. Pressure - Pumps: 25 psi
Voltage - Pumps: 120V AC
Phase - Pumps: 1
Max. Viscosity - Pumps: 1,500 cps
HP - Pumps: 1/16 hp
Turn Down Ratio - Pumps: 100:1
Reproducibility - Pumps: +/-2.0%
Includes: 20 ft Roll of Suction/Discharge Tubing, Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Tubing Material: Santoprene
Body Material: Polycarbonate
Min. Flow Rate: 17.00 gpd
Standards: CE, cULus, NSF/ANSI 50, NSF/ANSI 372, NSF/ANSI 61
Head and Fitting Material - Pumps: PVC
Self-Priming: Yes
Reproducibility: +/-2.0%
Turn Down Ratio: 100:1
Suction Lift: 25 ft
Pump RPM: 45 RPM
Number of Feeds: 1
Motor RPM: 45 RPM
Phase: Single
Features: Foot Valve Not Required, Pump Head Requires No Valves, Pumps Off-Gassing Solutions and Run Dry, Self-Priming Against Max. Working Pressure, Solutions Do Not Contact Moving Parts
Item - Chemical Metering Pumps: Chemical Metering Pump
Hz: 60
Item: Peristaltic Chemical Metering Pump
Tubing Material - Peristaltic Pumps: Santoprene
Control Programs: 4-20 mA Input, Manual Control
Roller Material: Polyethylene
Frequency: 60 Hz
Intake Connection Type: NPT
Flow Rate (Minimum): 0.38 gpd
Horsepower (Maximum): 1/16 hp
Media Temperature (Minimum): 32 Degrees F
Duty Cycle: Continuous
Viscosity (Maximum): 1,500 cps
Motor Type: Brushless DC
Flow Rate (Maximum): 17 gpd
Motor Speed (Maximum): 45 RPM
Housing Material: Polycarbonate
Ambient Temperature (Maximum): 104 Degrees F
Chemical Compatibility: Ammonium Hydroxide,Antifreeze,Hydrochloric Acid 10%,Hydrochloric Acid 20%,Hydrochloric Acid 30%,Phosphoric Acid 100%,Phosphoric Acid 40%,Phosphoric Acid 50%,Phosphoric Acid 60%,Phosphoric Acid 70%,Phosphoric Acid 80%,Phosphoric Acid 90%,Potassium Hydroxide 50%,Sodium Hydroxide 20%,Sodium Hypochlorite 10%,Sodium Hypochlorite 5%,Sulfuric Acid 10%,Sulfuric Acid 20%,Sulfuric Acid 30%,Sulfuric Acid 40%,Water
Priming: Self-Priming
Fitting Material: Polypropylene/PVC
Motor Enclosure: Totally Enclosed
Nameplate Voltage: 120V AC
Head Material: Polycarbonate/Santoprene
Degassing Valve Included: No
Pressure (Maximum): 100 psi
Motor Mounting Type: Horizontal, Vertical
Media Temperature (Maximum): 104 Degrees F
Discharge Connection Type: NPT
Electrical Connection Type: Plug-In
Seal Material: Santoprene
Seal Type: O-Ring
Motor Enclosure Design: Totally Enclosed
Pump Technology: Peristaltic
Motor Thermal Protection: Auto

Description

Chemical Metering Pump
