Shop STENNER

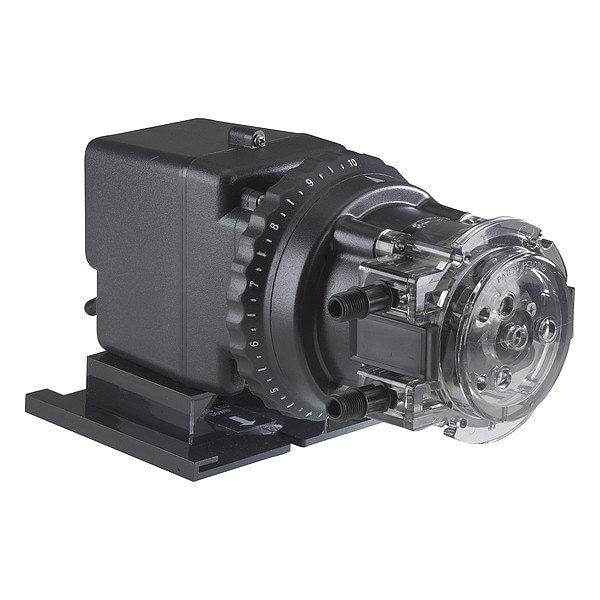

PeristalticChemMeteringPump, 40gpd, 100psi

  • Mfr # 85MHP40

  • Zoro # G716557451

product price:  $591.99
/ea
Free Shipping & Returns

Key Features

Head Material
Polycarbonate/Santoprene
Includes
20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Viscosity (Maximum)
1,500 cps
Media Temperature (Minimum)
32 Degrees F
Seal Type
Sealless
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
85MHP40
Zoro #
G716557451
UPC #
840034711660
Country of Origin
United States

Dimensions

Cord Length
6 ft
Overall Height
6 in
Manufacturers Warranty Length
2 yr
Overall Width
10.6 in
Intake Connection Size
1/4 in
Overall Length
5.3 in
Discharge Connection Size
3/8 in

Details

Item
Peristaltic Chemical Metering Pump
Head Material
Polycarbonate/Santoprene
Includes
20 ft Roll of Suction/Discharge Tubing, Additional Pump Tube, Duckbill Check Valve, Weighted Suction Line Strainer, (3) 1/4 in Connecting Nuts, (3) 1/4 in Ferrules
Viscosity (Maximum)
1,500 cps
Media Temperature (Minimum)
32 Degrees F
Seal Type
Sealless
Fitting Material
Polypropylene/PVC
Media Temperature (Maximum)
125 Degrees F
Motor Mounting Type
Horizontal, Vertical
Intake Connection Type
NPT
Flow Rate (Maximum)
40 gpd
Pump Technology
Peristaltic
Control Programs
Manual Control
Seal Material
Santoprene
Duty Cycle
Continuous
Turn Down Ratio
20:1
Flow Rate (Minimum)
2 gpd
Discharge Connection Type
NPT
Standards
cCSAus, CE, cULus, ETL
Housing Material
Polycarbonate
Degassing Valve Included
No
Pressure (Maximum)
100 psi
Motor Thermal Protection
Auto
Phase
Single
Ambient Temperature (Maximum)
125 Degrees F
Motor Enclosure Design
Open Fan Cooled
Nameplate Voltage
220V AC
Electrical Connection Type
Plug-In
Number of Feeds
1
Frequency
60 Hz
Roller Material
Polyethylene
Reproducibility
+/-2.0%
Tubing Material
Santoprene
Flow Rate Output Control
Adjustable
Horsepower (Maximum)
1/30 hp

Description

Peristaltic Chemical Metering Pump, Control Programs Manual Control, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Flow Rate (Maximum) 40 gpd, Flow Rate (Minimum) 2 gpd, Horsepower (Maximum) 1/30 hp, Intake Connection Size 1/4 in, Intake Connection Type NPT, Media Temperature (Maximum) 125 Degrees F, Media Temperature (Minimum) 32 Degrees F, Nameplate Voltage 220V AC, Number of Feeds 1, Pressure (Maximum) 100 psi, Reproducibility +/-2.0 Percent, Tubing Material Santoprene
