This item is Discontinued.

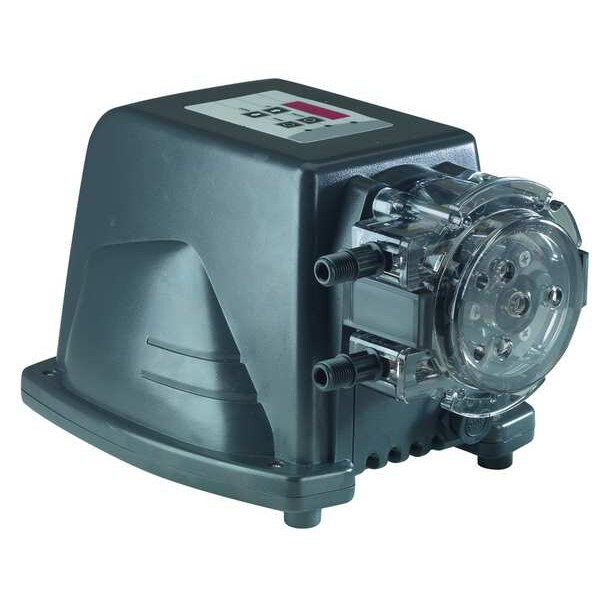

Stenner SVP1 Series 85 GPD 25 Psi SVP1L5A1S2G1

SVP1 Series 85 GPD 25 Psi (Discontinued)

  • Mfr # SVP1L5A1S2G1
  • Zoro # G0266375
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVP1L5A1S2G1
Zoro #
G0266375
UPC #
-
Country of Origin
United States

Dimensions

Width
7 in
Length
10 1/8 in
Cord Length
6 ft
Height
6 1/8 in
Overall Height
6.1 in
Overall Length
10.1 in
Overall Width
7 in

Details

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Voltage
115
Max. Flow (gpd) - Pumps
85.00 gpd
Max. Flow (GPD) - Pumps
85.00 gpd
Max. Pressure - Pumps
25 psi
Voltage - Pumps
115V AC
Phase - Pumps
1
Max. Viscosity - Pumps
1,500 cps
HP - Pumps
1/30 hp
Turn Down Ratio - Pumps
20:1
Reproducibility - Pumps
+/-2.0%
Features
Adjustable Single Head, Valveless, Nonclogging Design
Tubing Material
Santoprene
Pump Type
Peristaltic
Item
Chemical Metering Pump
Tubing Material - Peristaltic Pumps
Santoprene
Reproducibility
+/-2%
Motor RPM
45 RPM
Self-Priming
Yes
Turn Down Ratio
20:1
Suction Lift
25 ft
Item - Chemical Metering Pumps
Chemical Metering Pump
Max. Viscosity
1500 CPS
Max. Flow Rate
85 gpd
Includes
20 ft Tubing, Connection Nuts/Ferrules, Spare Peristaltic Tube And Injection Valve
Motor HP
1/30
Min. Flow Rate
4.3 gpd
Number of Feeds
1
Head and Fitting Material - Pumps
Polycarbonate/Polypropylene/PVC
Head and Fitting Material
Polycarbonate
Standards
UL, CSA, Conforms to ANSI/NSF 61 & 372 STD
Body Material
Polycarbonate
Max. Pressure
25 psi
Flow Rate (Minimum)
4.3 gpd
Metering Reproducibility
+/-2.0%
Horsepower (Maximum)
1/30 hp
Max. Discharge Pressure
25 psi
Flow Rate (Maximum)
85 gpd
Housing Material
Polycarbonate
Priming
Self-Priming
Pressure (Maximum)
25 psi
Motor Speed (Maximum)
45 RPM
Nameplate Voltage
115V AC
Viscosity (Maximum)
1,500 cps

Description

Chemical Metering Pump, Flow Rate (Maximum) 85 gpd, Flow Rate (Minimum) 4.3 gpd, Horsepower (Maximum) 1/30 hp, Nameplate Voltage 115V AC, Number of Feeds 1, Pressure (Maximum) 25 psi, Reproducibility +/-2.0 Percent, Tubing Material Santoprene, Turn Down Ratio 20:1, Viscosity (Maximum) 1,500 cps, Housing Material Polycarbonate, Flow Rate Output Control Variable, Standards Conforms to ANSI/NSF 61 & 372 STD, CSA, UL
