  11. Diamond Turning Insert, Diamond, 1/2 in, CNMG, 3/64 in, Carbide

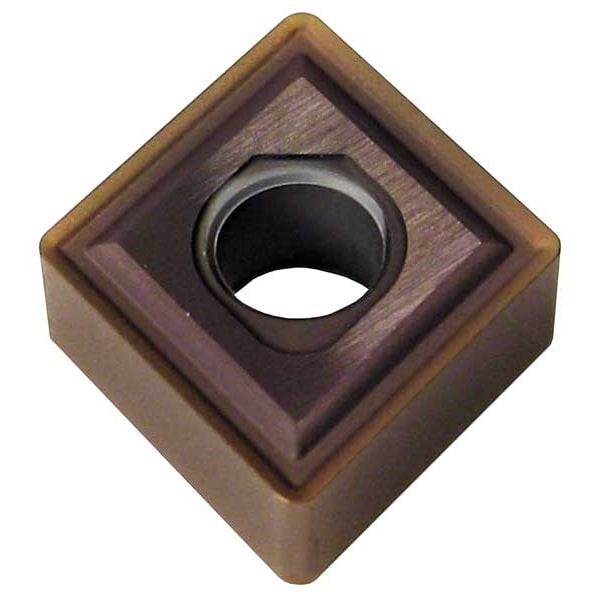

Sumitomo Diamond Turning Insert, Diamond, 1/2 in, CNMG, 3/64 in, Carbide CNMG433EEX-AC630M - main

Diamond Turning Insert, Diamond, 1/2 in, CNMG, 3/64 in, Carbide

  • Mfr # CNMG433EEX-AC630M

  • Zoro # G3763681

product price: $8.99
/ea
Sold in multiples of 10 for $89.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG433EEX-AC630M
Zoro #
G3763681
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Nose Radius
0.0472"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC630M
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
CNMG120412NEX
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
Relief Angle
0 Degrees
Hardened (H) Compatibility
No
Coating
Super FF TiCN/Al2O3/TiN CVD
Cast Iron (K) Compatibility
Yes
For Use With
DCLN, MCLN, Toolholders, A-MCLN Boring Bars
Steel (P) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M)
ANSI Number
CNMG433EEX-AC630M
Super Alloy (S) Compatibility
No
No. of Edges
4
Cutting Direction
Neutral
Mounting Style
Clamp
Primary Material Application ISO Code
M, P
Material - Machining
Carbide
Clearance Angle
0 Degrees
Chip-Breaker Code
EEX
Included Angle
80 Degrees
Measurement System
Fractional Inch
ANSI Code
CNMG433EEX
Number of Cutting Edges
4
Primary Material Application
Stainless Steel, Steel
Manufacturer Grade
AC630M
Chip-Breaker Style
Double
Cutting Application
Turning
Insert Holding Type
Straight Hole
Finish - Machining
Al203+TiCN
Shape
Rhombic
Coating Process
CVD
Material
Carbide
Application
Medium
Style
CNMG

Description

Diamond Turning Insert, Chip-Breaker Code EEX, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code CNMG433EEX, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
