Shop SUMITOMO

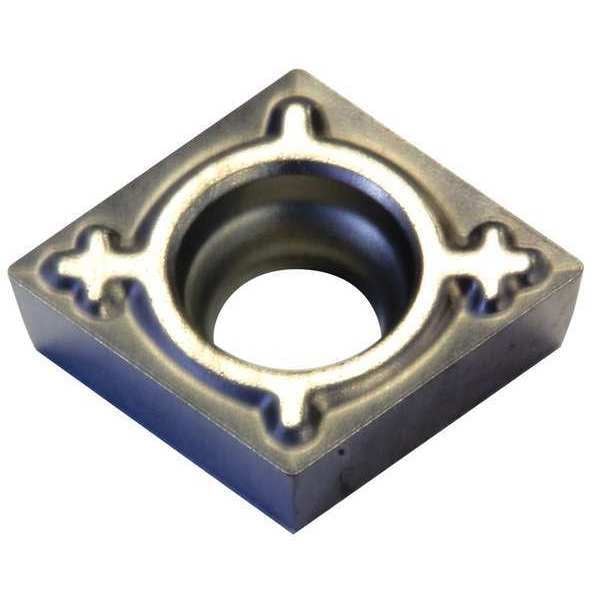

Diamond Turning Insert, Diamond, 2, CCGT, .2, Cermet

  • Mfr # CCGT21.50EFC-T1500A

  • Zoro # G6333516

product price:  $8.19
/ea
Sold in multiples of 10 for $81.90

Key Features

Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
1/4 in
Insert Size
21.50
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CCGT21.50EFC-T1500A
Zoro #
G6333516
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
21.50
Corner Radius
0.0039 in
Insert Thickness
0.0940"
Nose Radius
0.0039"
Mounting Hole Dia.
0.110"
Thickness
3/32 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
1/4 in
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Finishing
Rake
15 Degrees
ISO Number
CCGT060201N-FC
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Stainless (M), Steel (P)
ANSI Number
CCGT21.50EFC-T1500A
No. of Edges
4
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
No
Cutting Direction
Neutral
Coating
CVD
Mounting Style
Screw-On
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Number of Cutting Edges
4
Primary Material Application
Steel
Features
Excellent Wear Resistance and Fracture Resistance
Shape
Rhombic
Material - Machining
Cermet
Included Angle
80 Degrees
Chip-Breaker Code
EFC
Manufacturer Grade
T1500A
Clearance Angle
7 Degrees
Chip-Breaker Style
Single
Primary Material Application ISO Code
P05 - P30
Cutting Application
Turning
Measurement System
Fractional Inch
ANSI Code
CCGT21.50EFC
Insert Holding Type
Countersink Hole
Material
Cermet
Style
CCGT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code EFC, Inscribed Circle 1/4 in, ANSI Code CCGT21.50EFC, Chip-Breaker Style Single, Clearance Angle 7 Degrees
