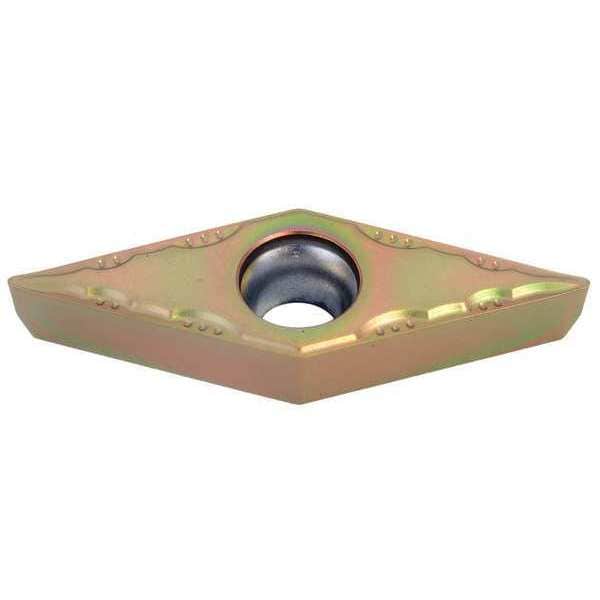

Sumitomo Diamond Turning Insert, Diamond, 2, VCGT, 1, Cermet VCGT221MESI-T1500Z - main

Diamond Turning Insert, Diamond, 2, VCGT, 1, Cermet

  • Mfr # VCGT221MESI-T1500Z

  • Zoro # G6380930

product price: $14.69
/ea
Sold in multiples of 10 for $146.90

Key Features

Insert Shape
Diamond
Insert Style
VCGT
Inscribed Circle
2
Insert Size
221
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VCGT221MESI-T1500Z
Zoro #
G6380930
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
221
Corner Radius
1
Nose Radius
0.0156"
Insert Thickness
0.1250"
Mounting Hole Dia.
0.134"
Thickness
2

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VCGT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
T1500Z
Insert Material
Cermet
Insert Application
Roughing
Rake
0 Degrees
ISO Number
VCGT110304MN-SI
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P)
Coating
CBN
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Hardened (H) Compatibility
No
ANSI Number
VCGT221MESI-T1500Z
Mounting Style
Screw-On
Cutting Direction
Neutral
No. of Edges
2
Cast Iron (K) Compatibility
No
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
Material - Machining
Cermet
Coating Process
PVD
Measurement System
Fractional Inch
Chip-Breaker Code
MESI
Primary Material Application
Steel
Cutting Application
Turning
Primary Material Application ISO Code
P
Shape
Rhombic
Clearance Angle
7 Degrees
Insert Holding Type
Countersink Hole
Features
Wear Resistant
Manufacturer Grade
T1500Z
Number of Cutting Edges
2
ANSI Code
VCGT221MESI
Included Angle
35 Degrees
Chip-Breaker Style
Single
Material
Cermet
Application
Roughing
Style
VCGT

Description

Diamond Turning Insert, Chip-Breaker Code MESI, Inscribed Circle 1/4 in, ANSI Code VCGT221MESI, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process PVD
