  6. Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN

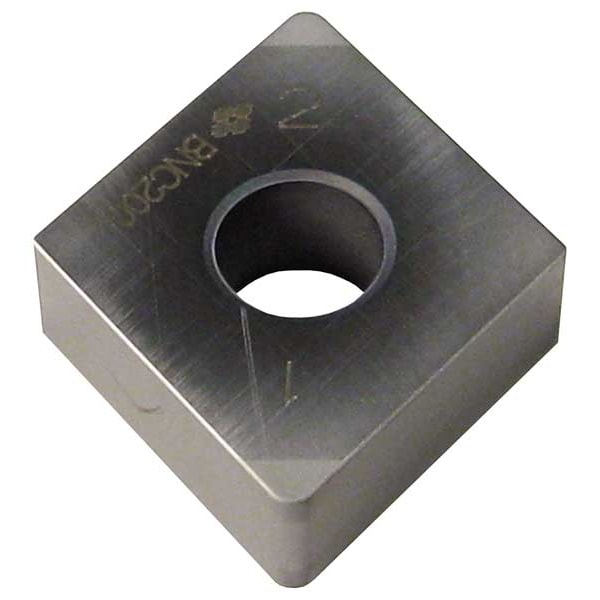

Sumitomo Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN 4NCCNGA432-BNC200 - main

Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN

  • Mfr # 4NCCNGA432-BNC200

  • Zoro # G1018017

product price:  $125.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
4
Insert Size
432
Chip-Breaker
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4NCCNGA432-BNC200
Zoro #
G1018017
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203
Insert Thickness
0.1875"
Nose Radius
0.0312"
Thickness
3
Depth of Cut
0.0150 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
4
Chip-Breaker
No
Grade
BNC200
Insert Material
CBN
Insert Application
Finishing
Rake
Positive
ISO Number
4NC-CNGA120408
Non Ferrous (N) Compatibility
No
Relief Angle
0 Degrees
No. of Edges
4
Hardened (H) Compatibility
Yes
Steel (P) Compatibility
Yes
Coating
TiAlN
ANSI Number
4NCCNGA432-BNC200
Cutting Direction
Neutral
Mounting Style
Clamp
Cast Iron (K) Compatibility
Yes
For Use With
DCLN, MCLN, Toolholders, A-MCLN Boring Bars
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Hardened (H), Steel (P)
Features
Excellent Wear Resistance
Primary Material Application
Hardened Steel
Primary Material Application ISO Code
H
Number of Cutting Edges
4
Measurement System
Fractional Inch
Included Angle
80 Degrees
Insert Holding Type
Straight Hole
Shape
Rhombic
Clearance Angle
0 Degrees
Finish - Machining
TiN
Material - Machining
Carbide
Manufacturer Grade
BNC200
Cutting Application
Turning
ANSI Code
4NC-CNGA432
Material
CBN
Application
Medium
Style
CNGA

Description

Diamond Turning Insert, Inscribed Circle 1/2 in, TiN, ANSI Code 4NC-CNGA432, Clearance Angle 0 Degrees
