  11. Diamond Turning Insert, Diamond, 4, DNMX, 1, Carbide
Shop All Turning Inserts
Sumitomo

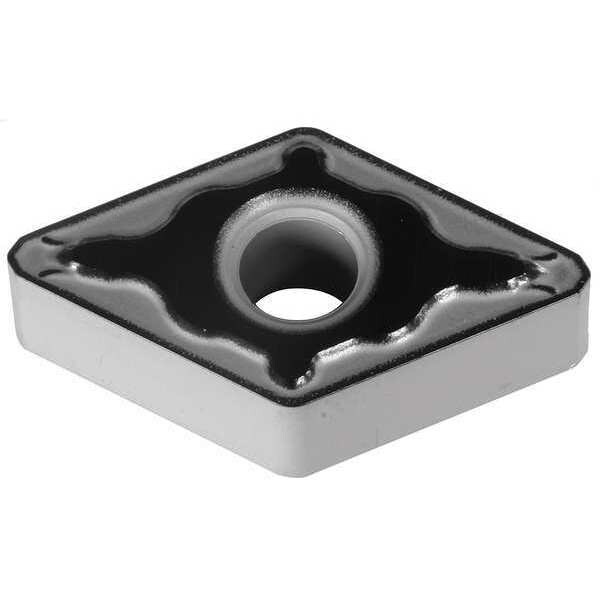

Diamond Turning Insert, Diamond, 4, DNMX, 1, Carbide

product price: $14.65
/ea
Sold in multiples of 10 for $146.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Shape Diamond
  • Insert Style DNMX
  • Inscribed Circle 4
  • Insert Size 431
  • Chip-Breaker Yes
See all product information

Product Information

Dimensions

Insert Size 431
Corner Radius 1
Nose Radius 0.0156"
Mounting Hole Dia. 0.203"

Details

Item Diamond Turning Insert
Insert Shape Diamond
Insert Style DNMX
Inscribed Circle 4
Chip-Breaker Yes
Grade AC8025P
Workpiece Compatibility Cast Iron (K), Stainless (M), Steel (P)
Insert Material Carbide
Insert Application Finishing
Super Alloy (S) Compatibility No
Steel (P) Compatibility Yes
Cast Iron (K) Compatibility Yes
ISO Number DNMX150404NSEW
Non Ferrous (N) Compatibility No
Mounting Style Top and Hole Clamping
Rake 10 Degrees
For Use With Toolholders, Boring Bars
No. of Edges 2
Stainless (M) Compatibility Yes
Hardened (H) Compatibility No
ANSI Number DNMX431ESEW-AC8025P
Coating CVD
Cutting Direction Neutral
Insert Thickness 0.1875"
Insert Holding Type Straight or Countersink Hole
Primary Material Application ISO Code P25
Material - Machining Carbide
Primary Material Application Steel
Thickness 3
Finish - Machining Absotech Platinum
Included Angle 55 Degrees
Number of Cutting Edges 2
ANSI Code DNMX431ESEW
Shape Rhombic
Chip-Breaker Style 10 Degrees Rake Angle
Clearance Angle 0 Degrees
Measurement System Fractional Inch
Coating Process CVD
Features Adhesion Resistant, Chipping Resistant
Cutting Application Turning
Chip-Breaker Code ESEW
Manufacturer Grade AC8025P
Application Finishing
Style DNMX

Description

Diamond Turning Insert, Chip-Breaker Code ESEW, Inscribed Circle 1/2 in, Absotech Platinum, ANSI Code DNMX431ESEW, Chip-Breaker Style 10 Degrees Rake Angle, Clearance Angle 0 Degrees , Coating Process CVD
