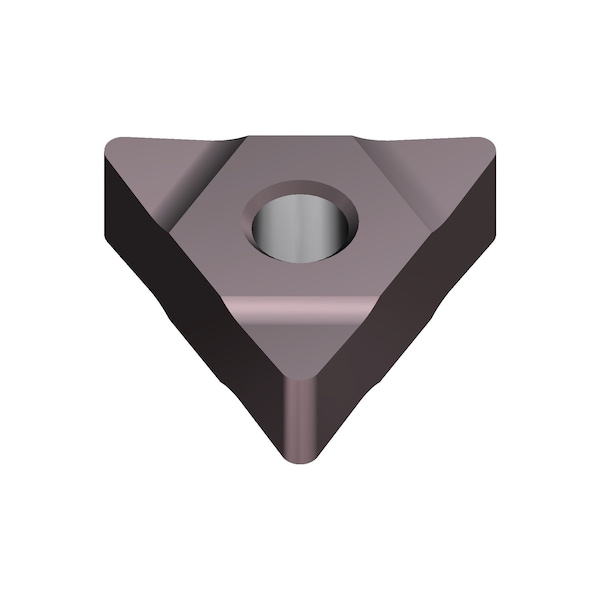

TNGG331EGH Grade AC503U Carbide Turning Insert
Mfr # 10JJARD
Zoro # G708976956
product price:Â $15.49
/ea
Sold in multiples of 10 for $154.90
Key Features
Insert Style
TNGG
Rake
Negative
ISO Number
TNGG160404N-GH
ANSI Number
TNGG331EGH-AC503U
Coating Process
PVD
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
10JJARD
Zoro #
G708976956
UPC #
-
Country of Origin
Japan
Dimensions
Insert Thickness
0.1874 in
Insert Size
0.6496 in
Nose Radius
0.0157 in
Mounting Hole Dia.
3.81 mm
Details
Item
Turning Insert
Insert Style
TNGG
Rake
Negative
ISO Number
TNGG160404N-GH
ANSI Number
TNGG331EGH-AC503U
Coating Process
PVD
Workpiece Compatibility
Hardened Steel
Chip-Breaker
Yes
Grade
AC503U
Coating
Super ZX Coat
Relief Angle
0 Degrees
Series
AC503U
Included Angle
60 Degrees
Insert Material
Carbide
Inscribed Circle
3/8 in
Mounting Style
Pin and Clamp
Material Application ISO Code
H05
Tolerance Class
G
