  11. Triangle Turning Insert, Triangle, 0.3940 in, TRM, 0.0156 in, Carbide

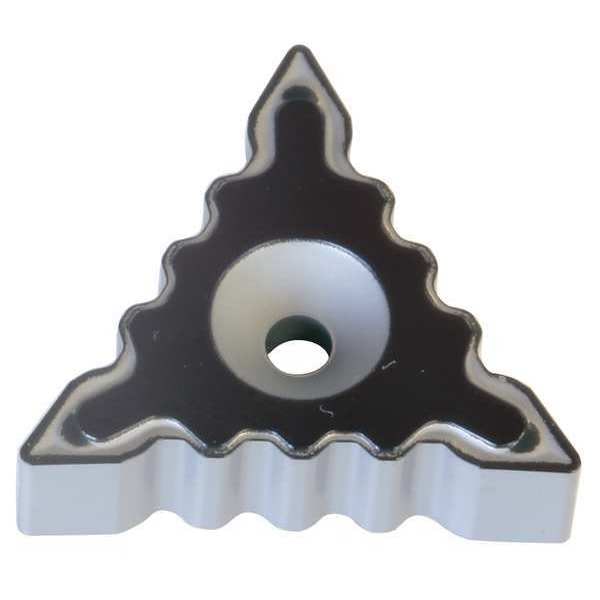

Sumitomo Triangle Turning Insert, Triangle, 0.3940 in, TRM, 0.0156 in, Carbide TRM551704-GU-AC8025P - main

Triangle Turning Insert, Triangle, 0.3940 in, TRM, 0.0156 in, Carbide

  • Mfr # TRM551704-GU-AC8025P

  • Zoro # G6308541

product price: $15.35
/ea
Sold in multiples of 10 for $153.50

Key Features

Insert Shape
Triangle
Insert Style
TRM
Inscribed Circle
0.3940 in
Insert Size
551704
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TRM551704-GU-AC8025P
Zoro #
G6308541
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
551704
Corner Radius
0.0156 in
Nose Radius
0.0078"
Mounting Hole Dia.
0.084"
Insert Thickness
0.0940"
Thickness
0.197 in
Through Hole Inside Dia.
0.084 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TRM
Inscribed Circle
0.3940 in
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
TRM551704-GU
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Coating
PVD
Cutting Direction
Neutral
ANSI Number
TRM551704-GU-AC8025P
Mounting Style
Top and hole Clamping
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Hardened (H) Compatibility
No
No. of Edges
3
Stainless (M) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Coating Process
CVD
Finish - Machining
Absotech Platinum
Number of Cutting Edges
3
Insert Holding Type
Countersink Hole
Primary Material Application ISO Code
P25
Material - Machining
Carbide
Chip-Breaker Style
On One Side
Shape
Triangle
Manufacturer Grade
AC8025P
Included Angle
55 Degrees
ANSI Code
TRM551704GU
Measurement System
Fractional Inch
Features
Adhesion Resistant, Chipping Resistant
Chip-Breaker Code
GU
Primary Material Application
Steel
Cutting Application
Turning
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code GU, Inscribed Circle 0.3940 in, Absotech Platinum
