Shop SUMITOMO

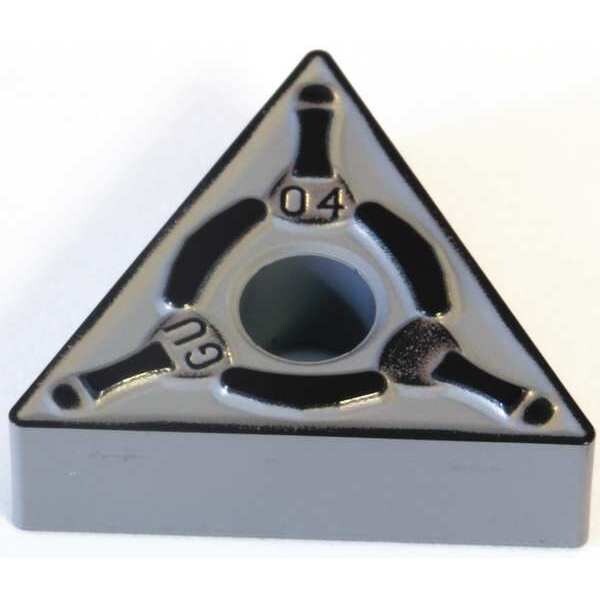

Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0156 in, Carbide

  • Mfr # TNMG331EGU-AC8025P

  • Zoro # G6314029

product price:
$
11.69
/ea
Sold in multiples of 10 for $116.90

Key Features

Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Insert Size
331
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TNMG331EGU-AC8025P
Zoro #
G6314029
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
331
Corner Radius
0.0156 in
Insert Thickness
0.1875"
Mounting Hole Dia.
0.150"
Nose Radius
0.0156"
Through Hole Inside Dia.
0.15 in
Thickness
0.1875 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Medium
Rake
7 Degrees
ISO Number
TNMG160404NGU
Coating
CVD
No. of Edges
3
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Mounting Style
Top and hole Clamping
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
ANSI Number
TNMG331EGU-AC8025P
Number of Cutting Edges
3
Primary Material Application
Steel
Included Angle
60 Degrees
Manufacturer Grade
AC8025P
Clearance Angle
0 Degrees
Primary Material Application ISO Code
P25
Chip-Breaker Style
Double Sided
Coating Process
CVD
ANSI Code
TNMG331EGU
Features
Adhesion Resistant, Chipping Resistant
Measurement System
Fractional Inch
Chip-Breaker Code
EGU
Shape
Triangle
Cutting Application
Turning
Material - Machining
Carbide
Finish - Machining
Absotech Platinum
Insert Holding Type
Straight Hole
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code EGU, Inscribed Circle 3/8 in, Absotech Platinum
