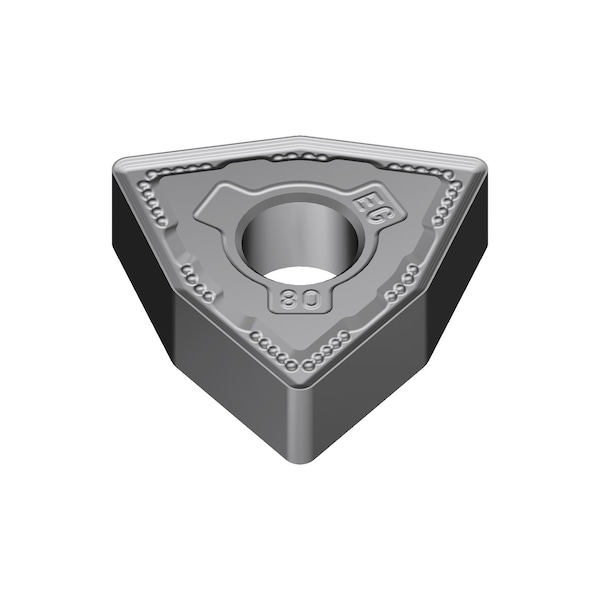

WNMG332EEG Grade AC8015P Carbide Turning Insert
Mfr # 19T4CSU
Zoro # G408977611
product price:Â $14.19
/ea
Sold in multiples of 10 for $141.90
Key Features
Grade
AC8015P
Nose Radius
0.0315 in
Inscribed Circle
3/8 in
Insert Style
WNMG
Insert Material
Carbide
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
19T4CSU
Zoro #
G408977611
UPC #
-
Country of Origin
Japan
Dimensions
Nose Radius
0.0315 in
Mounting Hole Dia.
3.81 mm
Insert Thickness
0.1874 in
Insert Size
0.2559 in
Details
Grade
AC8015P
Inscribed Circle
3/8 in
Insert Style
WNMG
Insert Material
Carbide
Tolerance Class
M
Rake
Negative
Relief Angle
0 Degrees
ANSI Number
WNMG332EEG-AC8015P
Mounting Style
Pin and Clamp
ISO Number
WNMG060408N-EG
Chip-Breaker
Yes
Workpiece Compatibility
Steel
Material Application ISO Code
P15, P20
Series
AC8000P
Included Angle
80 Degrees
Coating Process
CVD
Item
Turning Insert
Coating
Absotech
Description
