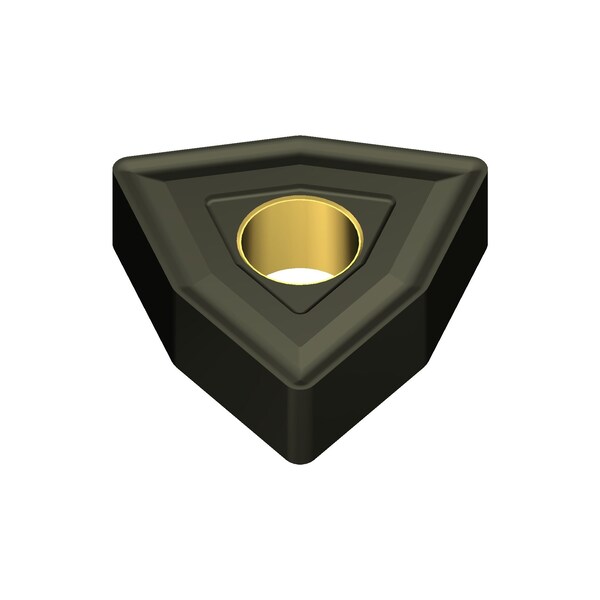

WNMG432EGZ Grade AC420K Carbide Turning Insert
Mfr # 191RCAW
Zoro # G408978281
product price:Â $14.35
/ea
Sold in multiples of 10 for $143.50
Key Features
Grade
AC420K
Mounting Hole Dia.
5.16 mm
Mounting Style
Pin and Clamp
Included Angle
80 Degrees
Insert Material
Carbide
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
191RCAW
Zoro #
G408978281
UPC #
-
Country of Origin
Japan
Dimensions
Mounting Hole Dia.
5.16 mm
Insert Size
0.3425 in
Insert Thickness
0.1874 in
Nose Radius
0.0315 in
Details
Grade
AC420K
Mounting Style
Pin and Clamp
Included Angle
80 Degrees
Insert Material
Carbide
Tolerance Class
M
Inscribed Circle
1/2 in
Item
Turning Insert
Coating
Super FF coat
Series
AC420K
ISO Number
WNMG080408N-GZ
Workpiece Compatibility
Cast Iron
Insert Style
WNMG
Chip-Breaker
Yes
Coating Process
CVD
ANSI Number
WNMG432EGZ-AC420K
Rake
Negative
Relief Angle
0 Degrees
Material Application ISO Code
K20, K15, K15
Description
Documents & Resources
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
