  11. Surge Protection Device, 3 Phase, 347/600V AC

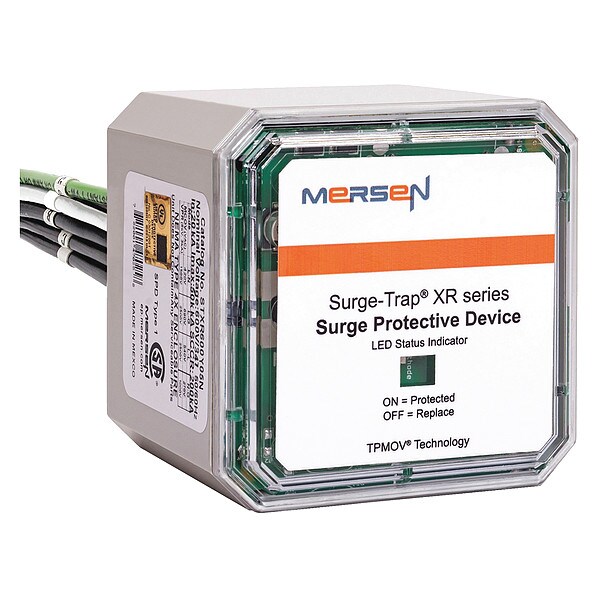

Surge Trap Surge Protection Device, 3 Phase, 347/600V AC STXR600Y05N - main

Surge Protection Device, 3 Phase, 347/600V AC

  • Mfr # STXR600Y05N

  • Zoro # G5527497

product price: $238.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Chase Nipple/Panel
Phase
3
Voltage
347/600V AC
Voltage Protection Rating
1000V (N-G), 1500V (L-N), 2500V (L-G, L-L)
Modes of Protection
L-G, L-N, L-L, N-G
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STXR600Y05N
Zoro #
G5527497
UPC #
782001470005
Country of Origin
Mexico

Dimensions

Length
3.35 in
Depth
4 in
Width
3.35 in
Chase Nipple Size
3/4 in

Details

Item
Surge Protection Device
Mounting Style
Chase Nipple/Panel
Phase
3
Voltage
347/600V AC
Voltage Protection Rating
1000V (N-G), 1500V (L-N), 2500V (L-G, L-L)
Modes of Protection
L-G, L-N, L-L, N-G
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
20 A
Short Circuit Current Rating
200kA
Modular
No
Filtering
No
Max. Continuing Operating Voltage
420/840V AC
Enclosure NEMA Rating
NEMA 4X
Enclosure Material
Polycarbonate
Wire Gauge
10 AWG
Standards
ANSI, UL Listed CSA Approved, RoHS, Type 1 or 2
Modular / Nonmodular
Nonmodular
UL SPD Type
Type 1/2
Min. Operating Temp.
-40 Degrees F
Color
Gray
System Connection
Parallel
Max. Operating Temp.
185 Degrees F
Basic Material
Nonmetallic
Includes Surge Counter
No
Frequency Hz
50/60 Hz
Mcov L-L
840 V
Min Storage Temp
-40 °C
System Configuration
3-Phase Wye
Mcov L-G
840 V
Max Discharge Current Imax 8 20
50 kA per phase
Mcov L-N
420 V
Flammability Rating
UL94-5VA
Wire Connections
Pre-wired
Max Operating Temp
85 °C
Ac Or Dc
AC
Min Operating Temp
-40 °C
Mcov N-G
420 V
Max Storage Temp
85 °C
Installation Mounting
Panel Mount
Includes
LED

Description

Surge Protection Device, Nonmetallic, Chase Nipple Size 3/4 in, Gray, Depth 4 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 4X
