Shop All Variable Pitch V-Belt Pulleys
Tb Woods

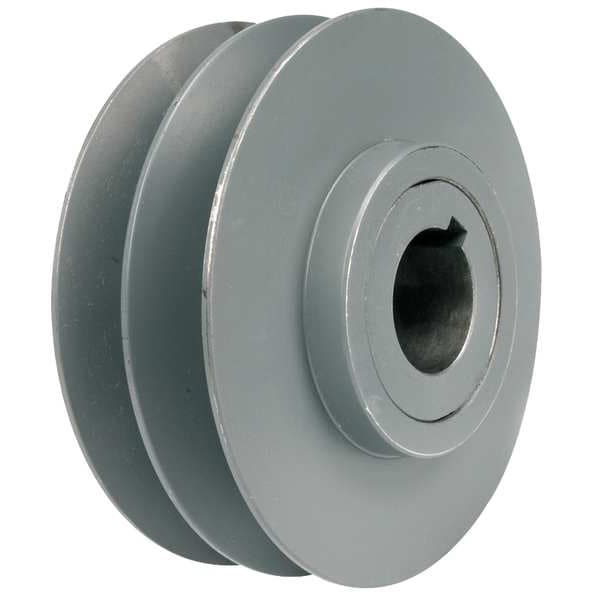

1-1/8" Fixed Bore 2 Groove Variable Pitch Pulley 5.95" OD
Mfr # 2VP62118
Zoro # G0856091
Free Shipping & Returns
$115.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pulley Material Cast Iron
- For V-Belt Section 3L, 4L, 5L, 5V, 5VX, A, AX, B, BX
- Pulley Type Variable Pitch V-Belt Pulley
- Number of Grooves 2
- Pulley Outside Dia. 5.95 in
Product Information
- Brand Tb Woods
- MFR # 2VP62118
- Zoro # G0856091
- UPC # 698672025911
- Country of Origin Multiple
- Category Variable Pitch V-Belt Pulleys
Dimensions
Pulley Outside Dia. | 5.95 in |
Fits Shaft Dia. | 1-1/8 in |
Keyway Size Type | 0.250 in x 0.125 in |
5L, B, or BX Belt Pitch Dia. | 5.15 in to 5.97 in |
5V or 5VX Belt Pitch Dia. | 5.07 in to 5.89 in |
Keyway Size | 0.250" x 0.125" |
4L, A, or AX Belt Pitch Dia. | 4.59 in to 5.82 in |
Pulley Bore Dia. | 1 1/8 in |
3L Belt Pitch Dia. | 4.46 in |
AX Pitch Diameter (Minimum) | 4.6 in |
Keyway Width | 1/4 in |
5V Pitch Diameter (Maximum) | 6.3 in |
Maximum Pitch Diameter | 5.3 in (3L), 5.6 in (4L, A), 5.9 in (5L, B), 6.3 in (5V) |
Outside Diameter | 5.95 in |
A Pitch Diameter (Minimum) | 4.6 in |
4L Pitch Diameter (Maximum) | 5.6 in |
B Pitch Diameter (Minimum) | 4.9 in |
A Pitch Diameter (Maximum) | 5.6 in |
3L Pitch Diameter (Minimum) | 4.5 in |
Minimum Pitch Diameter | 4.5 in (3L), 4.6 in (4L, A), 4.9 in (5L, B), 5.3 in (5V) |
For Belt Trade Size | 3L, 4L, 5L, 5V, 5VX, A, AX, B, BX |
4L Pitch Diameter (Minimum) | 4.6 in |
Bore Diameter | 1 1/8 in |
BX Pitch Diameter (Minimum) | 4.9 in |
5L Pitch Diameter (Maximum) | 5.9 in |
BX Pitch Diameter (Maximum) | 5.9 in |
AX Pitch Diameter (Maximum) | 5.6 in |
5L Pitch Diameter (Minimum) | 4.9 in |
Keyway Depth | 1/8 in |
B Pitch Diameter (Maximum) | 5.9 in |
5V Pitch Diameter (Minimum) | 5.3 in |
Maximum Face Width | 2.125 in |
5VX Pitch Diameter (Minimum) | 5.3 in |
Minimum Face Width | 1.375 in |
Overall Width | 3 in |
Length through Bore | 3 in |
5VX Pitch Diameter (Maximum) | 6.3 in |
3L Pitch Diameter (Maximum) | 5.3 in |
Details
Description
Variable Pitch V-Belt Pulley, Bore Diameter 1 1/8 in, For Belt Trade Size 3L, 4L, 5L, 5V, 5VX, A, AX, B, BX, For V-Belt Type Banded, Classical, Cogged, Wedge, Material Cast Iron, Maximum Pitch Diameter 5.3 in (3L), 5.6 in (4L, A), 5.9 in (5L, B), 6.3 in (5V), Number of Grooves 2, Outside Diameter 5.95 in, 3L Pitch Diameter (Maximum) 5.3 in, 3L Pitch Diameter (Minimum) 4.5 in, 3V Pitch Diameter (Maximum) Not Applicable, 3V Pitch Diameter (Minimum) Not Applicable
