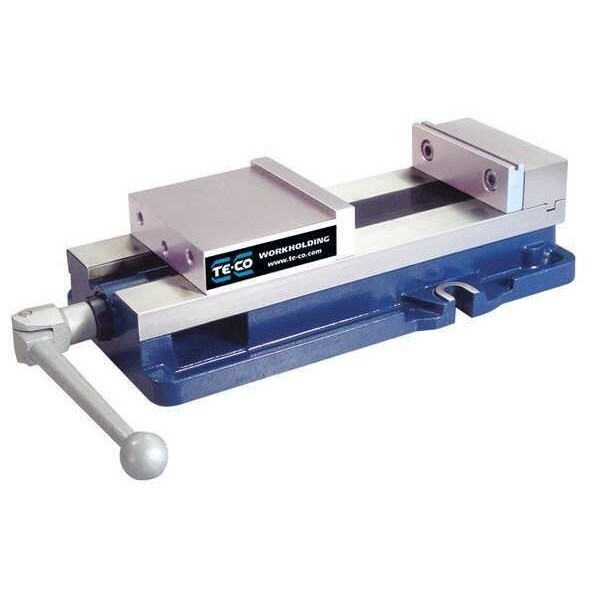

Machine Vise, Fixed Based, 4 in Jaw W

  • Mfr # PWS-4600
  • Zoro # G710059289
product price:
$
787.99
/ea
Free Shipping & Returns

Key Features

Material
Steel
Overall Length
14.22 in
Type
Manuel
Includes
Vise And Handle
Features
80,000psi Ductile Iron Body with Increased Nickel Content for Improved Corrosion Resistance, Bed Height Matched to Size 2.250" +/- 0.0005", Footprint and Distance from The Keyway to Stationary Jaw Meets Industry Standard, Hardened Vise Bed and Jaw Plates, Outside Rails of Body are Machined Within 0.0005" (.013Mm) Square to Jaw, Powder Coated Paint Resists Flaking And Peeling, Sealed and Lubricated Needle Roller Thrust Bearing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PWS-4600
Zoro #
G710059289
UPC #
-
Country of Origin
Taiwan, Province of China
Material
Steel
Type
Manuel
Includes
Vise And Handle
Features
80,000psi Ductile Iron Body with Increased Nickel Content for Improved Corrosion Resistance, Bed Height Matched to Size 2.250" +/- 0.0005", Footprint and Distance from The Keyway to Stationary Jaw Meets Industry Standard, Hardened Vise Bed and Jaw Plates, Outside Rails of Body are Machined Within 0.0005" (.013Mm) Square to Jaw, Powder Coated Paint Resists Flaking And Peeling, Sealed and Lubricated Needle Roller Thrust Bearing
Pipe Capacity
4'
Color
Silver/Blue
Application
Workholding, Milling
Finish
Base Painted
Weight
33 Lb
Clamping Force
7,000 lbs.
Capacity with Jaws Flipped
12.59"
Shape
Retangular
Vise Capacity
6"
Lead Screw Type
UNC
Item
Machine Vise
Travel - X-Axis - Maximum
6 in
Jaw Material
Ductile Iron
Machine Vise Type
Single Station
Bed/Base Parallel Tolerance - Maximum
0.0005 in
Jaw Face Type
Smooth
Compatible Machinery
CNC Milling Machine, Drill Press
Base Type
Fixed
Jaw Opening - Maximum
6 in
Clamping Force - Maximum
7,000 lbf
Base Material
Ductile Iron

Dimensions

Overall Length
14.22 in
Size
4"
Overall Width
6.3 in
Bed Height
2.250"
Bed Width
4.02"
Height with Jaws
3.63"
Hex Length
1.58"
Fits Chest Size
80,000psi Ductile Iron Body with Increased Nickel Content for Improved Corrosion Resistance, Bed Height Matched to Size 2.250" +/- 0.0005", Footprint and Distance from The Keyway to Stationary Jaw Meets Industry Standard, Hardened Vise Bed and Jaw Plates, Outside Rails of Body are Machined Within 0.0005" (.013Mm) Square to Jaw, Powder Coated Paint Resists Flaking And Peeling, Sealed and Lubricated Needle Roller Thrust Bearing
Mounting Slot/Keyway Width
1/2 in
Overall Height
3.63 in
Jaw Width
4 in
Mounting Slot Length
5 3/4 in
Throat Depth
1 3/8 in
Length
14.22 in

Description

SINGLE-STATION VISE
