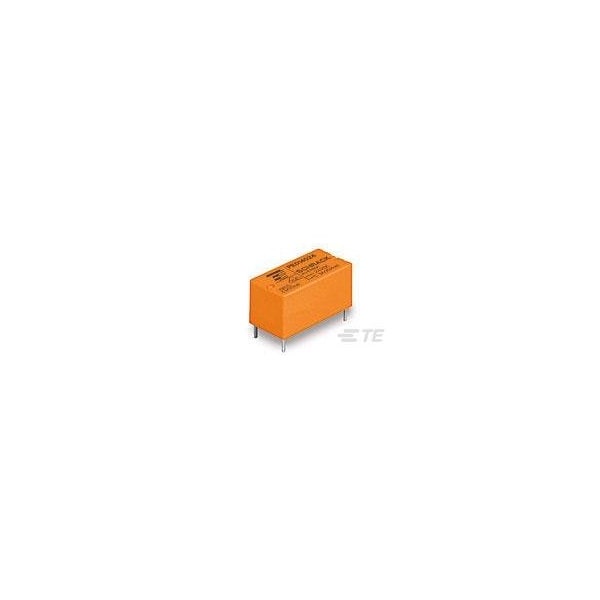

PCB, General Purpose Relay, 5 A, PCB

  • Mfr # 1-1393219-5

  • Zoro # G800973242

product price:  $4.75
/ea
Sold in multiples of 25 for $118.75

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
24V DC
Current Rating
5A
Contact Material
AgNi90/10
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1-1393219-5
Zoro #
G800973242
UPC #
-
Country of Origin
Czechia

Dimensions

Length
20 mm [ .787 in ]
Width
10 mm [ .394 in ]
Height
10 mm [ .394 in ]

Details

Item
General Purpose Power Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
24V DC
Current Rating
5A
Contact Material
AgNi90/10
Contact Switching Voltage (Max) (VAC)
400
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
4000
Insulation Initial Resistance (MΩ)
10000000
Coil Resistance (Ω)
2725
Contact Voltage Rating (VAC)
250
Contact Arrangement
1 Form C (CO)
Contact Limiting Continuous Current (A)
5
Contact Limiting Breaking Current (A)
5
Contact Current Rating (A)
5
Insulation Creepage Between Contact and Coil
4 mm [ .157 in ]
Insulation Clearance Between Contact and Coil
3.2 mm [ .126 in ]
Contact Limiting Short-Time Current (A)
5
Coil Power Rating Class
200 to 300 mW
Environmental Category of Protection
RTII
Contact Plating Material
Gold
Contact Limiting Making Current (A)
5
Environmental Ambient Temperature Class
70 to 85°C
Environmental Ambient Temperature (Max)
85 °C [ 185 °F ]
Insulation Initial Dielectric Between Open Contacts (Vrms)
1000
Coil Power Rating (DC) (mW)
211
Insulation Creepage Class
3 to 5.5mm
Insulation Special Features
Tracking Index of Relay Base PTI250
Contact Number of Poles
1
Insulation Clearance Class
2.5 to 4mm
Contact Current Class
2 to 5 A, Less Than 16A
Coil Magnetic System
Monostable, DC
Insulation Initial Dielectric Between Coil/Contact Class
3500 to 4000 V
Contact Form
SPDT
Base Shape
Square
Contact Rating (AC)
5 A @ 250V
Number of Pins
5
