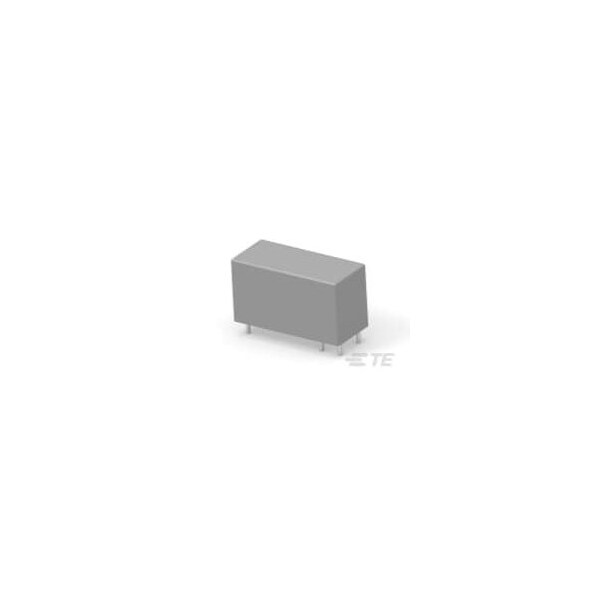

Te Connectivity PCB, PCB Relay, 16 A, PCB 1-1415536-9 - main

PCB, PCB Relay, 16 A, PCB

  • Mfr # 1-1415536-9

  • Zoro # G501026148

product price:  $3.35
/ea
Sold in multiples of 40 for $134.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Coil Voltage
12V DC
Current Rating
16 A
Contact Rating (AC)
10 A @ 400V, 20A @ 250V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1-1415536-9
Zoro #
G501026148
UPC #
-
Country of Origin
Mexico

Details

Item
Power PCB Relay
Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Coil Voltage
12V DC
Current Rating
16 A
Contact Rating (AC)
10 A @ 400V, 20A @ 250V
Contact Material
AgNi90/10
Power Consumption - Relay
400 mW
Number of Poles
1
Features
UL Coil Insulation Class F
Insulation Creepage
10 mm [ .394 in ]
Coil Type
Monostable, DC
Contact Voltage Rating
250V AC
Protection Category
RTII
Contact Limiting Short-Time Current
16A
Contact Limiting Making Current
30A
Coil Resistance
360 Ω
Insulation Clearance
10 mm [ .394 in ]
Contact Limiting Continuous Current
26A
Contact Rating
16A
Switching Voltage
400V AC
Operating Temp. Range
85 to 105°C
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Breaking Current
16A
Contact Form
1 Form A (NO)
Number of Pins
6
Base Shape
Square
